Step1: Product

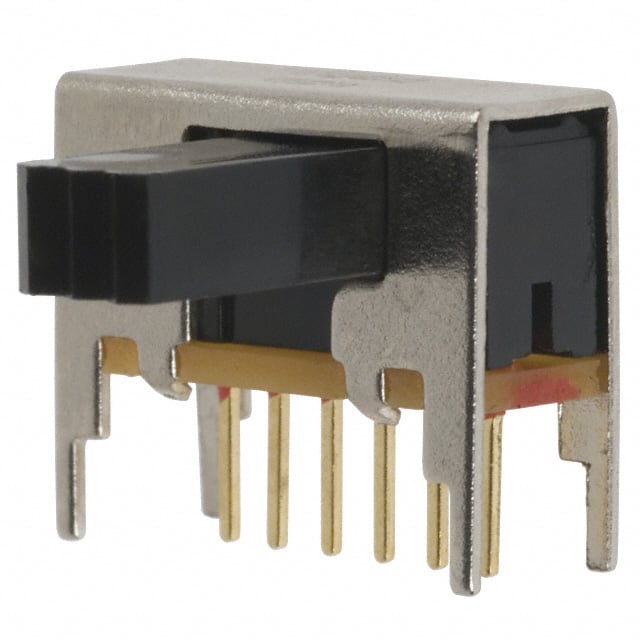

TE Connectivity ALCOSWITCH Switches 1571630-3
Images are for reference only
Manufacturer
Manufacturer No
1571630-3
Packaging
Bulk
Description
SWITCH SLIDE DPDT 0.4VA 20V
Detailed Description
Slide Switch DPDT Through Hole, Right Angle
Datasheet
Payment
Delivery
Series
MSS
Circuit
DPDT
Features
Epoxy Sealed Terminals
Packaging
Bulk
Manufacturer
TE Connectivity ALCOSWITCH Switches
Actuator Type
Standard
Mounting Type
Through Hole, Right Angle
Switch Travel
2.00mm
Contact Finish
Gold
Contact Timing
Shorting (MBB)
Actuator Length
9.50mm
Electrical Life
15,000 Cycles
Mechanical Life
15,000 Cycles
Operating Force
600gf
Switch Function
On-On
Contact Material
Copper Alloy
Actuator Material
Polyoxymethylene (Acetal) (POM)
Termination Style
PC Pin
Base Product Number
1571630
Voltage Rating - AC
20 V
Voltage Rating - DC
20 V
Current Rating (Amps)
0.4VA (AC/DC)
Operating Temperature
-20°C ~ 85°C
| Attribute | Value |
|---|---|
| Series | MSS |
| Circuit | DPDT |
| Features | Epoxy Sealed Terminals |
| Packaging | Bulk |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Actuator Type | Standard |
| Mounting Type | Through Hole, Right Angle |
| Switch Travel | 2.00mm |
| Contact Finish | Gold |
| Contact Timing | Shorting (MBB) |
| Actuator Length | 9.50mm |
| Electrical Life | 15,000 Cycles |
| Mechanical Life | 15,000 Cycles |
| Operating Force | 600gf |
| Switch Function | On-On |
| Contact Material | Copper Alloy |
| Actuator Material | Polyoxymethylene (Acetal) (POM) |
| Termination Style | PC Pin |
| Base Product Number | 1571630 |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Operating Temperature | -20°C ~ 85°C |
