Step1: Product

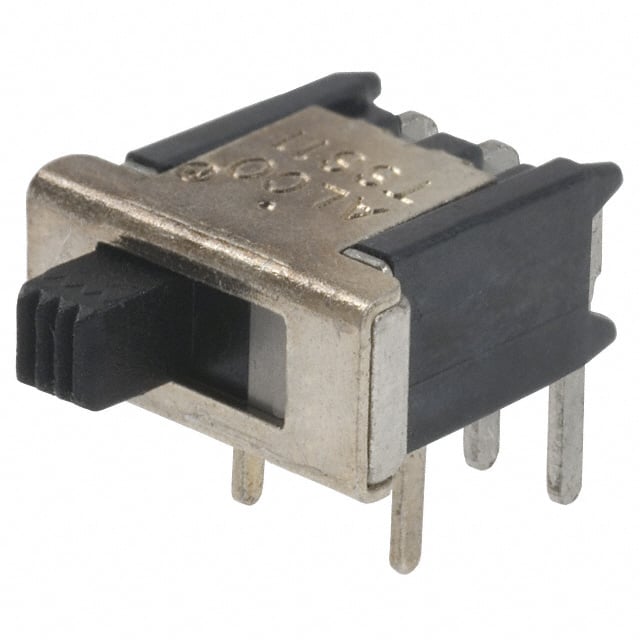

TE Connectivity ALCOSWITCH Switches 1571984-1
Images are for reference only
Manufacturer
Manufacturer No
1571984-1
Quantity
19
Availability
In Stock
Packaging
Bulk
Description
SWITCH SLIDE SPDT 0.4VA 20V
Detailed Description
Slide Switch SPDT Through Hole, Right Angle
Datasheet
Payment
Delivery
Series
TSS
Circuit
SPDT
Features
Epoxy Sealed Terminals
Packaging
Bulk
Manufacturer
TE Connectivity ALCOSWITCH Switches
Actuator Type
Standard
Mounting Type
Through Hole, Right Angle
Switch Travel
3.05mm
Contact Finish
Gold
Contact Timing
Non-Shorting (BBM)
Actuator Length
2.79mm
Electrical Life
60,000 Cycles
Mechanical Life
60,000 Cycles
Operating Force
150 ~ 600gf
Switch Function
On-On
Contact Material
Copper
Actuator Material
Polybutylene Terephthalate (PBT)
Termination Style
PC Pin
Base Product Number
1571984
Voltage Rating - AC
20 V
Voltage Rating - DC
20 V
Current Rating (Amps)
0.4VA (AC/DC)
Operating Temperature
-20°C ~ 80°C
| Attribute | Value |
|---|---|
| Series | TSS |
| Circuit | SPDT |
| Features | Epoxy Sealed Terminals |
| Packaging | Bulk |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Actuator Type | Standard |
| Mounting Type | Through Hole, Right Angle |
| Switch Travel | 3.05mm |
| Contact Finish | Gold |
| Contact Timing | Non-Shorting (BBM) |
| Actuator Length | 2.79mm |
| Electrical Life | 60,000 Cycles |
| Mechanical Life | 60,000 Cycles |
| Operating Force | 150 ~ 600gf |
| Switch Function | On-On |
| Contact Material | Copper |
| Actuator Material | Polybutylene Terephthalate (PBT) |
| Termination Style | PC Pin |
| Base Product Number | 1571984 |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Operating Temperature | -20°C ~ 80°C |
