Step1: Product

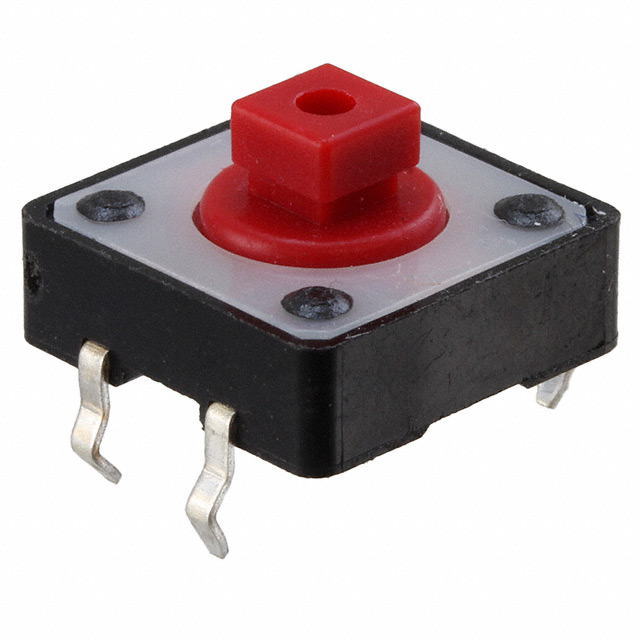

TE Connectivity AMP Connectors 1571627-1
Images are for reference only
Manufacturer
Manufacturer No
1571627-1
Quantity
544
Availability
In Stock
Packaging
Tray
Description
TACTILE SWITCHES TACT SWITCH260G
Detailed Description
Tactile Switch SPST-NO Top Actuated Through Hole
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Series
FSM100 ~ 104
Circuit
SPST-NO
Outline
12.00mm x 12.00mm
Features
-
Packaging
Tray
Illumination
Non-Illuminated
Actuator Type
Plunger for Cap
Mounting Type
Through Hole
Switch Travel
0.30mm
Mechanical Life
100,000 Cycles
Operating Force
260gf
Switch Function
Off-Mom
Actuator Material
Acetal
Termination Style
PC Pin
Ingress Protection
-
Actuator Orientation
Top Actuated
Operating Temperature
-35°C ~ 85°C
Contact Rating @ Voltage
0.05A @ 24VDC
Illumination Type, Color
-
Actuator Length, Right Angle
-
Illumination Voltage (Nominal)
-
Actuator Height off PCB, Vertical
7.28mm
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Series | FSM100 ~ 104 |
| Circuit | SPST-NO |
| Outline | 12.00mm x 12.00mm |
| Features | - |
| Packaging | Tray |
| Illumination | Non-Illuminated |
| Actuator Type | Plunger for Cap |
| Mounting Type | Through Hole |
| Switch Travel | 0.30mm |
| Mechanical Life | 100,000 Cycles |
| Operating Force | 260gf |
| Switch Function | Off-Mom |
| Actuator Material | Acetal |
| Termination Style | PC Pin |
| Ingress Protection | - |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -35°C ~ 85°C |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Illumination Type, Color | - |
| Actuator Length, Right Angle | - |
| Illumination Voltage (Nominal) | - |
| Actuator Height off PCB, Vertical | 7.28mm |
