Step1: Product

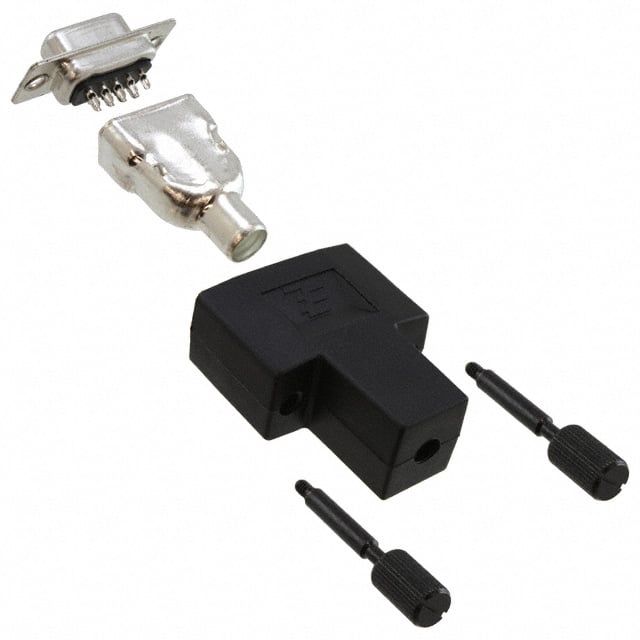

TE Connectivity AMP Connectors 1571654-4
Images are for reference only
Manufacturer
Manufacturer No
1571654-4
Packaging
Bulk
Description
CONN D-SUB RCPT 9POS SOLDER CUP
Detailed Description
9 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Color
Black
Series
AMPLIMITE HD-20
Features
Backshell, Cover, Mounting Hardware, Shielded
Packaging
Bulk
Wire Gauge
-
Termination
Solder Cup
Contact Form
-
Contact Type
Signal
Mounting Type
Free Hanging (In-Line)
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Cable Side, Male Jackscrew
Number of Rows
2
Voltage Rating
250V
Backset Spacing
-
Connector Style
D-Sub
Contact Material
Brass
Ingress Protection
-
Base Product Number
1571654
Dielectric Material
Polybutylene Terephthalate (PBT)
Number of Positions
9
Current Rating (Amps)
3A
Operating Temperature
-55°C ~ 105°C
Shell Material, Finish
Steel, Tin Plated
Contact Finish Thickness
8.00µin (0.203µm)
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
1 (DE, E)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Color | Black |
| Series | AMPLIMITE HD-20 |
| Features | Backshell, Cover, Mounting Hardware, Shielded |
| Packaging | Bulk |
| Wire Gauge | - |
| Termination | Solder Cup |
| Contact Form | - |
| Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Cable Side, Male Jackscrew |
| Number of Rows | 2 |
| Voltage Rating | 250V |
| Backset Spacing | - |
| Connector Style | D-Sub |
| Contact Material | Brass |
| Ingress Protection | - |
| Base Product Number | 1571654 |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 9 |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 105°C |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 8.00µin (0.203µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 1 (DE, E) |
