Step1: Product

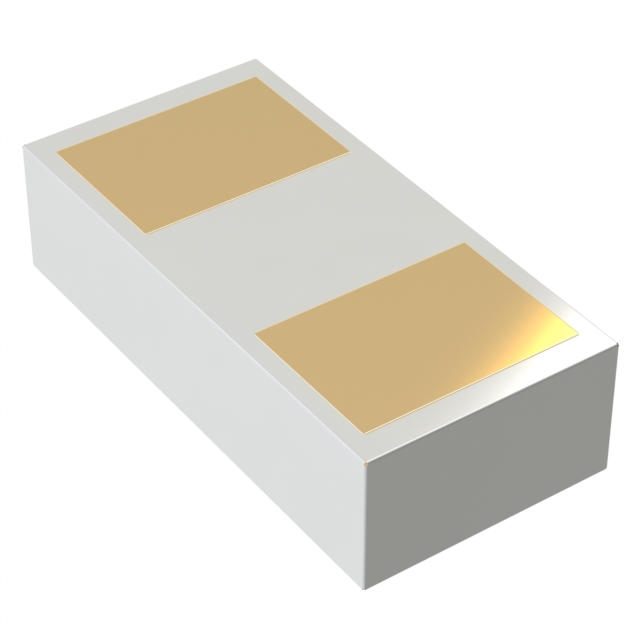

Infineon Technologies ESD229U1W0201E6327XTSA1
Images are for reference only
Manufacturer
Manufacturer No
ESD229U1W0201E6327XTSA1
Package
0201 (0603 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
ESD229U1W0201E6327XTSA1
Detailed Description
11V (Typ) Clamp 11A (8/20µs) Ipp Tvs Diode Surface Mount SG-WLL-2-5
Datasheet
Payment
Delivery
Mfr
Infineon Technologies
Type
Zener
Grade
-
Series
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Applications
General Purpose
Mounting Type
Surface Mount
Qualification
-
Package / Case
0201 (0603 Metric)
Power - Peak Pulse
121W
Operating Temperature
-55°C ~ 125°C
Power Line Protection
No
Capacitance @ Frequency
1.2pF @ 1GHz
Supplier Device Package
SG-WLL-2-5
Unidirectional Channels
1
Voltage - Breakdown (Min)
-
Voltage - Clamping (Max) @ Ipp
11V (Typ)
Voltage - Reverse Standoff (Typ)
5.5V (Max)
Current - Peak Pulse (10/1000µs)
11A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | Infineon Technologies |
| Type | Zener |
| Grade | - |
| Series | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | 0201 (0603 Metric) |
| Power - Peak Pulse | 121W |
| Operating Temperature | -55°C ~ 125°C |
| Power Line Protection | No |
| Capacitance @ Frequency | 1.2pF @ 1GHz |
| Supplier Device Package | SG-WLL-2-5 |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | - |
| Voltage - Clamping (Max) @ Ipp | 11V (Typ) |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Current - Peak Pulse (10/1000µs) | 11A (8/20µs) |
