Step1: Product
Infineon Technologies ESD156B1W0201E6327XTSA1

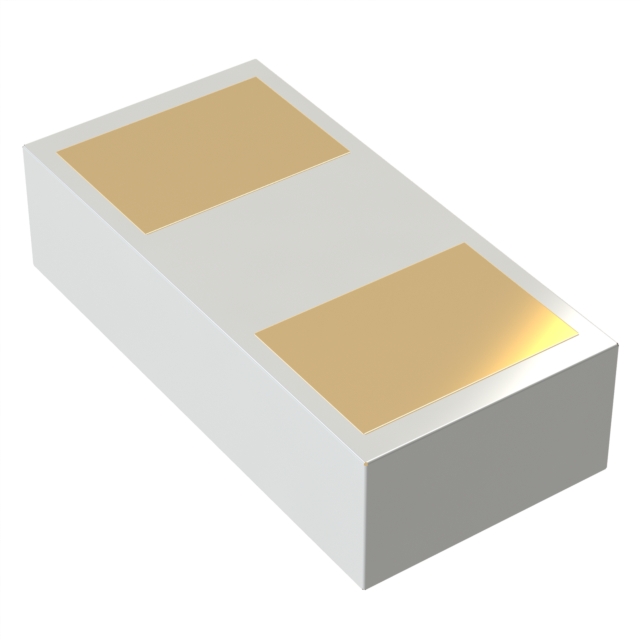

Images are for reference only
Manufacturer
Manufacturer No
ESD156B1W0201E6327XTSA1
Quantity
580
Availability
In Stock
Package
0201 (0603 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TVS DIODE 3.6VWM 3.5V SGWLL23
Detailed Description
3.5V (Typ) Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount SG-WLL-2-3
Datasheet
Payment
Delivery
Mfr
Infineon Technologies
Type
Zener
Series
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Applications
HDMI, USB
Mounting Type
Surface Mount
Package / Case
0201 (0603 Metric)
Power - Peak Pulse
7W
Operating Temperature
-55°C ~ 125°C (TA)
Power Line Protection
No
Bidirectional Channels
1
Capacitance @ Frequency
0.19pF @ 10GHz
Supplier Device Package
SG-WLL-2-3
Voltage - Breakdown (Min)
5.9V
Voltage - Clamping (Max) @ Ipp
3.5V (Typ)
Voltage - Reverse Standoff (Typ)
3.6V (Max)
Current - Peak Pulse (10/1000µs)
2A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | Infineon Technologies |
| Type | Zener |
| Series | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Applications | HDMI, USB |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Power - Peak Pulse | 7W |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Power Line Protection | No |
| Bidirectional Channels | 1 |
| Capacitance @ Frequency | 0.19pF @ 10GHz |
| Supplier Device Package | SG-WLL-2-3 |
| Voltage - Breakdown (Min) | 5.9V |
| Voltage - Clamping (Max) @ Ipp | 3.5V (Typ) |
| Voltage - Reverse Standoff (Typ) | 3.6V (Max) |
| Current - Peak Pulse (10/1000µs) | 2A (8/20µs) |
