Step1: Product

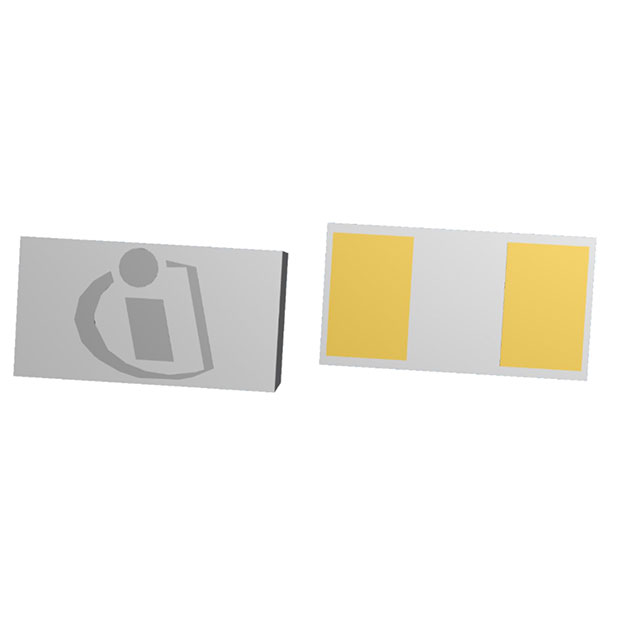

Infineon Technologies ESD227U1W01005E6327XTSA1
Images are for reference only
Manufacturer
Manufacturer No
ESD227U1W01005E6327XTSA1
Availability
In Stock
Package
01005 (0402 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TVS DIODE 8.4VC SGWLL27
Detailed Description
8.4V (Typ) Clamp 5A Ipp Tvs Diode Surface Mount SG-WLL-2-7
Datasheet
Payment
Delivery
Mfr
Infineon Technologies
Type
Zener
Series
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Applications
-
Mounting Type
Surface Mount
Package / Case
01005 (0402 Metric)
Power - Peak Pulse
43W
Base Product Number
ESD277
Operating Temperature
-55°C ~ 125°C
Power Line Protection
No
Capacitance @ Frequency
1.4pF @ 1MHz
Supplier Device Package
SG-WLL-2-7
Unidirectional Channels
1
Voltage - Breakdown (Min)
-
Voltage - Clamping (Max) @ Ipp
8.4V (Typ)
Voltage - Reverse Standoff (Typ)
-
Current - Peak Pulse (10/1000µs)
5A
| Attribute | Value |
|---|---|
| Mfr | Infineon Technologies |
| Type | Zener |
| Series | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Applications | - |
| Mounting Type | Surface Mount |
| Package / Case | 01005 (0402 Metric) |
| Power - Peak Pulse | 43W |
| Base Product Number | ESD277 |
| Operating Temperature | -55°C ~ 125°C |
| Power Line Protection | No |
| Capacitance @ Frequency | 1.4pF @ 1MHz |
| Supplier Device Package | SG-WLL-2-7 |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | - |
| Voltage - Clamping (Max) @ Ipp | 8.4V (Typ) |
| Voltage - Reverse Standoff (Typ) | - |
| Current - Peak Pulse (10/1000µs) | 5A |
