Step1: Product
Infineon Technologies ESD101B102ELE6327XTMA1

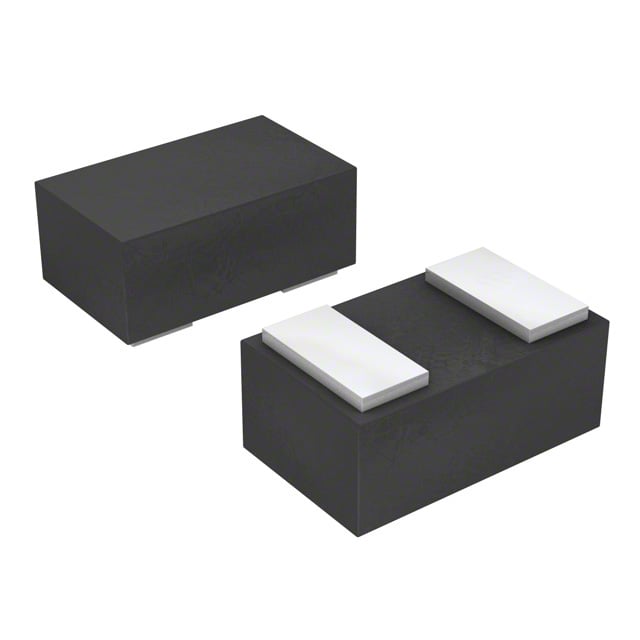

Images are for reference only
Manufacturer
Manufacturer No
ESD101B102ELE6327XTMA1
Quantity
895
Availability
In Stock
Package
0402 (1006 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TVS DIODE 5.5VWM 30VC PGTSLP220
Detailed Description
30V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount PG-TSLP-2-20
Datasheet
Payment
Delivery
Mfr
Infineon Technologies
Type
Zener
Series
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Applications
RF Antenna
Mounting Type
Surface Mount
Package / Case
0402 (1006 Metric)
Power - Peak Pulse
-
Base Product Number
ESD101
Operating Temperature
-55°C ~ 125°C (TJ)
Power Line Protection
No
Bidirectional Channels
1
Capacitance @ Frequency
0.2pF @ 1MHz
Supplier Device Package
PG-TSLP-2-20
Voltage - Breakdown (Min)
7.3V (Typ)
Voltage - Clamping (Max) @ Ipp
30V
Voltage - Reverse Standoff (Typ)
5.5V (Max)
Current - Peak Pulse (10/1000µs)
2A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | Infineon Technologies |
| Type | Zener |
| Series | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Applications | RF Antenna |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1006 Metric) |
| Power - Peak Pulse | - |
| Base Product Number | ESD101 |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Power Line Protection | No |
| Bidirectional Channels | 1 |
| Capacitance @ Frequency | 0.2pF @ 1MHz |
| Supplier Device Package | PG-TSLP-2-20 |
| Voltage - Breakdown (Min) | 7.3V (Typ) |
| Voltage - Clamping (Max) @ Ipp | 30V |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Current - Peak Pulse (10/1000µs) | 2A (8/20µs) |
