Step1: Product

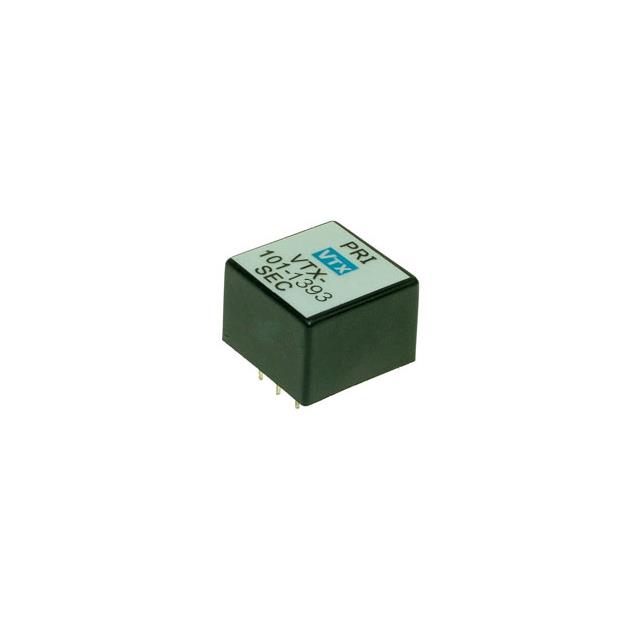

Vigortronix VTX-101-1393
Images are for reference only
Manufacturer
Manufacturer No
VTX-101-1393
Packaging
Bulk
Description
AUDIO XFMR ENCAP MATCH
Detailed Description
600 Impedance Primary Ohms 2.4k Impedance Secondary Ohms 1:02 Audio Transformer Through Hole
Datasheet
Payment
Delivery
Series
VTX-101
Packaging
Bulk
Manufacturer
Vigortronix
Mounting Type
Through Hole
Approval Agency
-
Frequency Range
-
Size / Dimension
0.709" L x 0.709" W (18.00mm x 18.00mm)
Transformer Type
Line (Audio Power Distribution)
Termination Style
PC Pin
Frequency Response
-2dB ~ 0.2dB
Voltage - Isolation
1500Vrms
Height - Seated (Max)
0.500" (12.70mm)
Impedance - Primary (Ohms)
600
Impedance - Secondary (Ohms)
2.4k
DC Resistance (DCR) - Primary
145Ohm
DC Resistance (DCR) - Secondary
350Ohm
Turns Ratio - Primary:Secondary
1:02
| Attribute | Value |
|---|---|
| Series | VTX-101 |
| Packaging | Bulk |
| Manufacturer | Vigortronix |
| Mounting Type | Through Hole |
| Approval Agency | - |
| Frequency Range | - |
| Size / Dimension | 0.709" L x 0.709" W (18.00mm x 18.00mm) |
| Transformer Type | Line (Audio Power Distribution) |
| Termination Style | PC Pin |
| Frequency Response | -2dB ~ 0.2dB |
| Voltage - Isolation | 1500Vrms |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Impedance - Primary (Ohms) | 600 |
| Impedance - Secondary (Ohms) | 2.4k |
| DC Resistance (DCR) - Primary | 145Ohm |
| DC Resistance (DCR) - Secondary | 350Ohm |
| Turns Ratio - Primary:Secondary | 1:02 |
