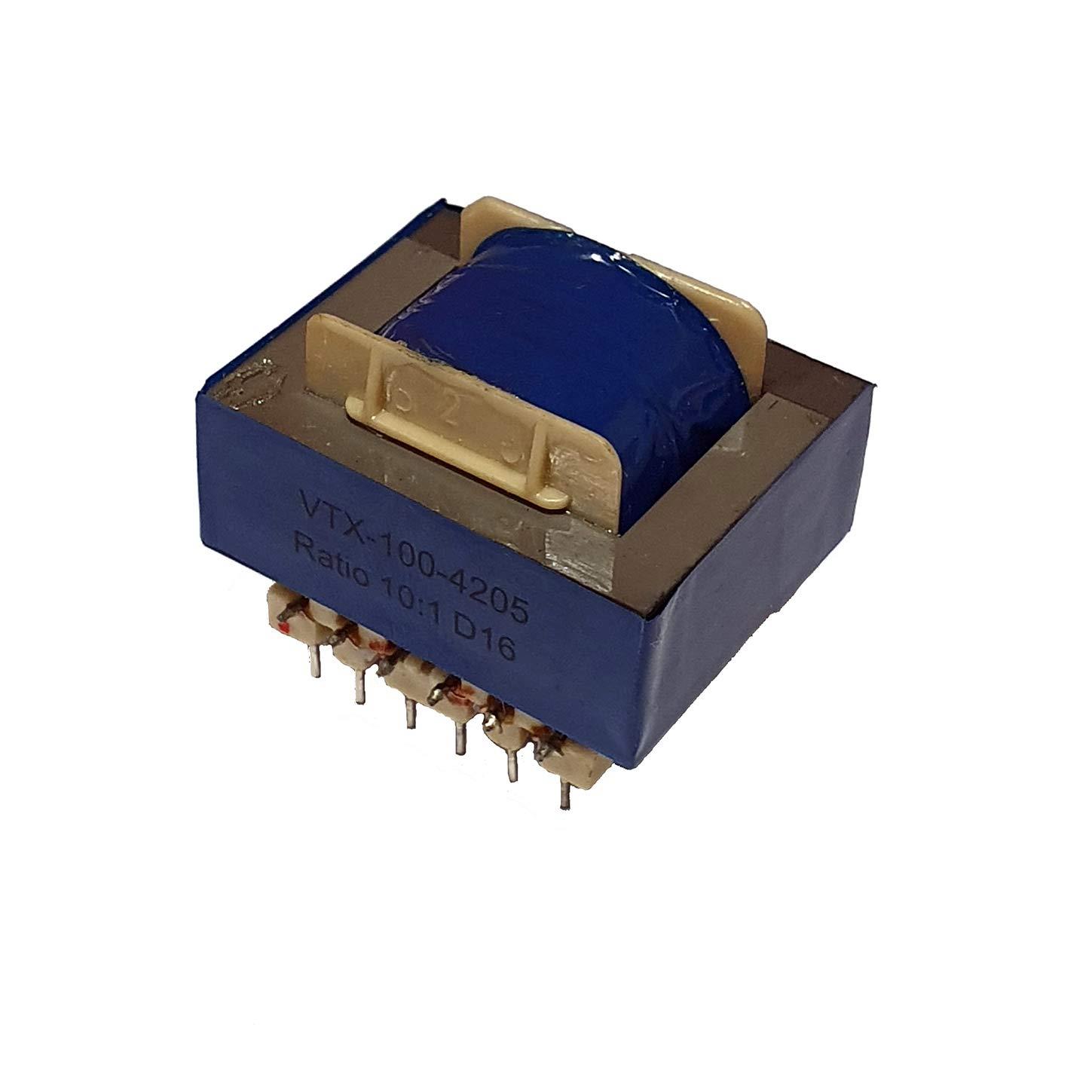

Vigortronix VTX-100-4205

Images are for reference only

Manufacturer

Vigortronix

Manufacturer No

VTX-100-4205

Packaging

Box

Description

6 OHMS / 600 0HMS BIFILAR AUDIO

Detailed Description

600 Impedance Primary Ohms 6 Impedance Secondary Ohms Audio Transformer 20Hz ~ 20kHz Through Hole

Datasheet

VTX-100-4205

Payment

Delivery

Series

VTX-100

Packaging

Box

Manufacturer

Vigortronix

Mounting Type

Through Hole

Insertion Loss

-

Approval Agency

-

Frequency Range

20Hz ~ 20kHz

Size / Dimension

1.697" L x 1.406" W (43.10mm x 35.7mm)

Transformer Type

Impedance Matching

Termination Style

PC Pin

Voltage - Isolation

-

Height - Seated (Max)

1.181" (30.00mm)

Operating Temperature

-20°C ~ 70°C

Impedance - Primary (Ohms)

600

Impedance - Secondary (Ohms)

6

DC Resistance (DCR) - Primary

15.34Ohm

DC Resistance (DCR) - Secondary

44mOhm

Attribute	Value
Series	VTX-100
Packaging	Box
Manufacturer	Vigortronix
Mounting Type	Through Hole
Insertion Loss	-
Approval Agency	-
Frequency Range	20Hz ~ 20kHz
Size / Dimension	1.697" L x 1.406" W (43.10mm x 35.7mm)
Transformer Type	Impedance Matching
Termination Style	PC Pin
Voltage - Isolation	-
Height - Seated (Max)	1.181" (30.00mm)
Operating Temperature	-20°C ~ 70°C
Impedance - Primary (Ohms)	600
Impedance - Secondary (Ohms)	6
DC Resistance (DCR) - Primary	15.34Ohm
DC Resistance (DCR) - Secondary	44mOhm
