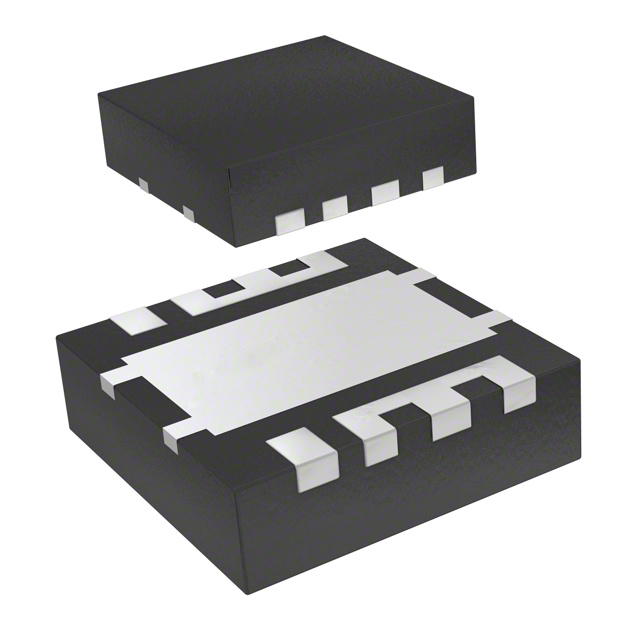

Texas Instruments CSD85312Q3E
Images are for reference only
Manufacturer
Manufacturer No
CSD85312Q3E
Quantity
29
Availability
In Stock
Package
8-PowerVDFN
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
MOSFET 2N-CH 20V 39A 8VSON
Detailed Description
Mosfet Array 20V 39A 2.5W Surface Mount 8-VSON (3.3x3.3)
Datasheet
Payment
Delivery
Series
NexFET™
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
MOSFET (Metal Oxide)
FET Feature
Logic Level Gate, 5V Drive
Power - Max
2.5W
Manufacturer
Texas Instruments
Configuration
2 N-Channel (Dual) Common Source
Mounting Type
Surface Mount
Package / Case
8-PowerVDFN
Vgs(th) (Max) @ Id
1.4V @ 250µA
Base Product Number
CSD85312
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
12.4mOhm @ 10A, 8V
Supplier Device Package
8-VSON (3.3x3.3)
Gate Charge (Qg) (Max) @ Vgs
15.2nC @ 4.5V
Drain to Source Voltage (Vdss)
20V
Input Capacitance (Ciss) (Max) @ Vds
2390pF @ 10V
Current - Continuous Drain (Id) @ 25°C
39A
| Attribute | Value |
|---|---|
| Series | NexFET™ |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | Logic Level Gate, 5V Drive |
| Power - Max | 2.5W |
| Manufacturer | Texas Instruments |
| Configuration | 2 N-Channel (Dual) Common Source |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerVDFN |
| Vgs(th) (Max) @ Id | 1.4V @ 250µA |
| Base Product Number | CSD85312 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 12.4mOhm @ 10A, 8V |
| Supplier Device Package | 8-VSON (3.3x3.3) |
| Gate Charge (Qg) (Max) @ Vgs | 15.2nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2390pF @ 10V |
| Current - Continuous Drain (Id) @ 25°C | 39A |
