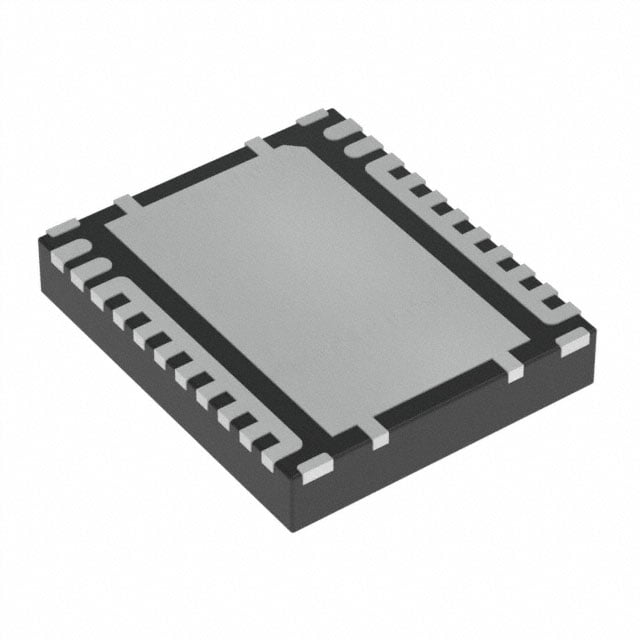

Texas Instruments CSD88584Q5DC
Images are for reference only
Manufacturer
Manufacturer No
CSD88584Q5DC
Quantity
2,419
Availability
In Stock
Package
22-PowerTFDFN
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
MOSFET 2N-CH 40V 22VSON-CLIP
Detailed Description
Mosfet Array 40V 12W Surface Mount 22-VSON-CLIP (5x6)
Datasheet
Payment
Delivery
Series
NexFET™
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
MOSFET (Metal Oxide)
FET Feature
-
Power - Max
12W
Manufacturer
Texas Instruments
Configuration
2 N-Channel (Half Bridge)
Mounting Type
Surface Mount
Package / Case
22-PowerTFDFN
Vgs(th) (Max) @ Id
2.3V @ 250µA
Base Product Number
CSD88584Q5
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
0.95mOhm @ 30A, 10V
Supplier Device Package
22-VSON-CLIP (5x6)
Gate Charge (Qg) (Max) @ Vgs
88nC @ 4.5V
Drain to Source Voltage (Vdss)
40V
Input Capacitance (Ciss) (Max) @ Vds
12400pF @ 20V
Current - Continuous Drain (Id) @ 25°C
-
| Attribute | Value |
|---|---|
| Series | NexFET™ |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Power - Max | 12W |
| Manufacturer | Texas Instruments |
| Configuration | 2 N-Channel (Half Bridge) |
| Mounting Type | Surface Mount |
| Package / Case | 22-PowerTFDFN |
| Vgs(th) (Max) @ Id | 2.3V @ 250µA |
| Base Product Number | CSD88584Q5 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 0.95mOhm @ 30A, 10V |
| Supplier Device Package | 22-VSON-CLIP (5x6) |
| Gate Charge (Qg) (Max) @ Vgs | 88nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 40V |
| Input Capacitance (Ciss) (Max) @ Vds | 12400pF @ 20V |
| Current - Continuous Drain (Id) @ 25°C | - |
