Step1: Product

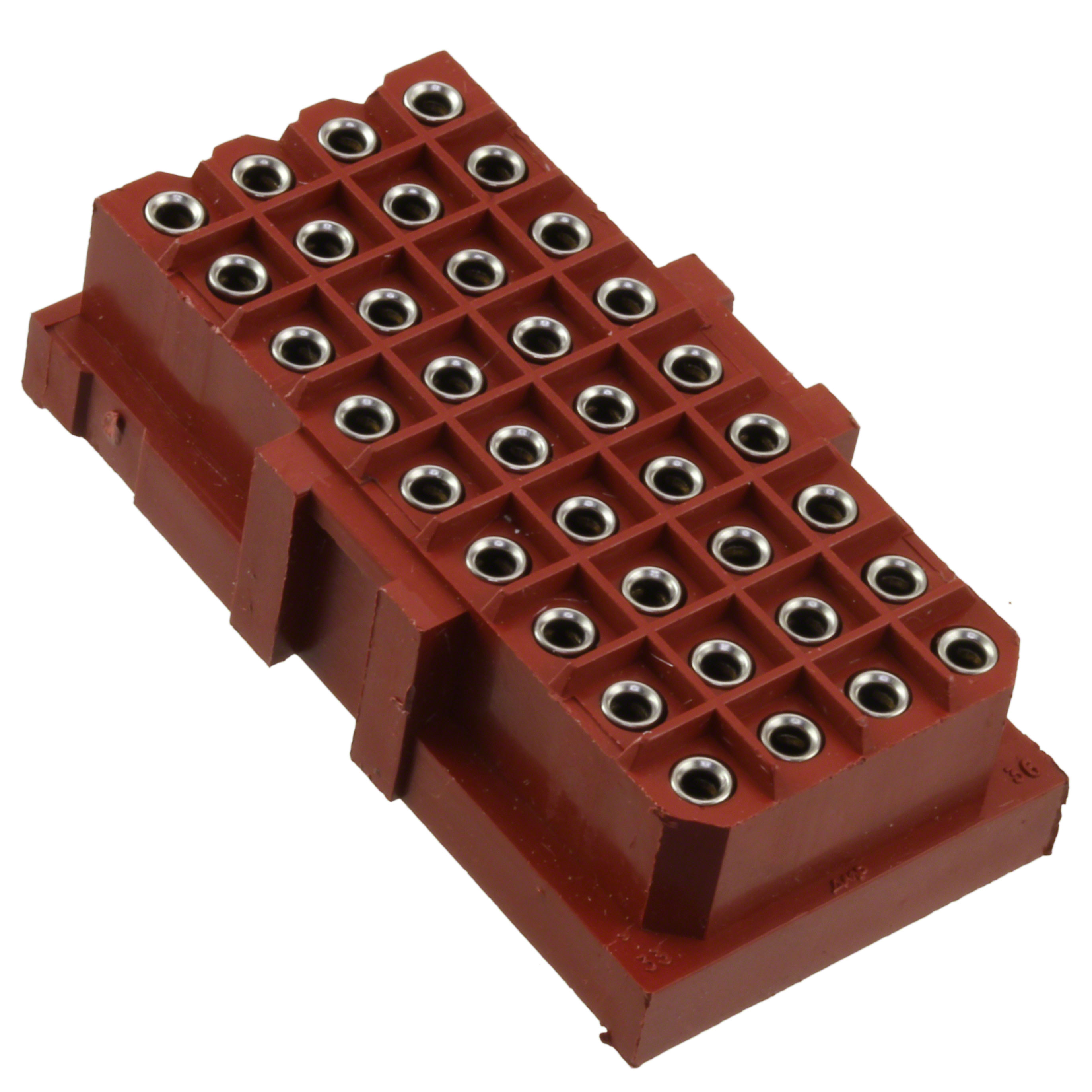

TE Connectivity AMP Connectors 207534-2
Images are for reference only
Manufacturer
Manufacturer No
207534-2
Packaging
Tray
Description
CONN HDR 36P 0.197 TIN-LEAD PCB
Detailed Description
36 Position Header Connector 0.197" (5.00mm) Through Hole Tin-Lead
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Metrimate
Features
-
Packaging
Tray
Termination
Solder
Applications
-
Contact Type
Female Socket
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
4
Pitch - Mating
0.197" (5.00mm)
Voltage Rating
600V
Contact Material
Phosphor Bronze
Insulation Color
Black, Red
Insulation Height
0.565" (14.35mm)
Ingress Protection
-
Base Product Number
207534
Insulation Material
Polyamide (PA), Nylon
Number of Positions
36
Row Spacing - Mating
0.197" (5.00mm)
Contact Finish - Post
Tin-Lead
Contact Length - Post
0.181" (4.60mm)
Current Rating (Amps)
7.5A
Operating Temperature
-55°C ~ 130°C
Mated Stacking Heights
-
Contact Finish - Mating
Tin-Lead
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
150.0µin (3.81µm)
Contact Finish Thickness - Mating
150.0µin (3.81µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Metrimate |
| Features | - |
| Packaging | Tray |
| Termination | Solder |
| Applications | - |
| Contact Type | Female Socket |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 4 |
| Pitch - Mating | 0.197" (5.00mm) |
| Voltage Rating | 600V |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black, Red |
| Insulation Height | 0.565" (14.35mm) |
| Ingress Protection | - |
| Base Product Number | 207534 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 36 |
| Row Spacing - Mating | 0.197" (5.00mm) |
| Contact Finish - Post | Tin-Lead |
| Contact Length - Post | 0.181" (4.60mm) |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -55°C ~ 130°C |
| Mated Stacking Heights | - |
| Contact Finish - Mating | Tin-Lead |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
