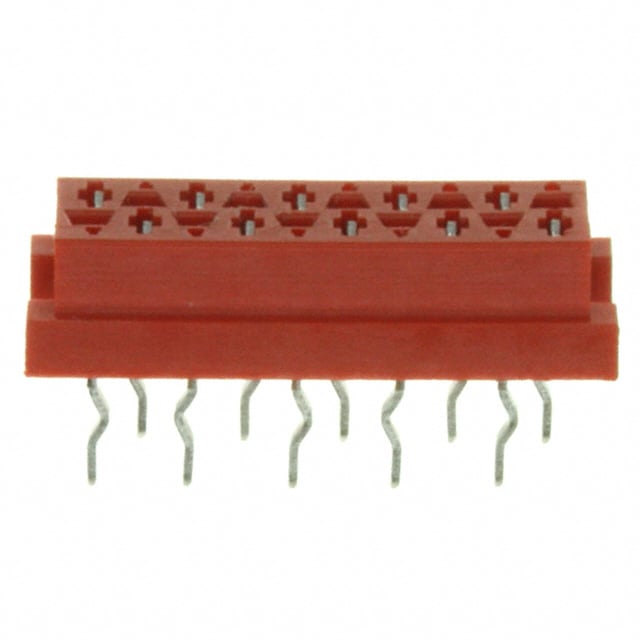

TE Connectivity AMP Connectors 1-215079-0
Images are for reference only
Manufacturer
Manufacturer No
1-215079-0
Quantity
1,128
Availability
In Stock
Packaging
Cut Tape (CT); Bulk
Description
CONN RCPT 10POS 0.1 TIN PCB
Detailed Description
10 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Style
Board to Board or Cable
Series
Micro-MaTch
Features
-
Packaging
Cut Tape (CT); Bulk
Termination
Kinked Pin, Solder
Applications
Automotive, General Purpose
Contact Type
Forked
Contact Shape
-
Mounting Type
Through Hole
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
100VDC
Contact Material
Phosphor Bronze
Insulation Color
Red
Insulation Height
0.157" (4.00mm)
Ingress Protection
-
Base Product Number
215079
Insulation Material
Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Number of Positions
10
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Contact Length - Post
0.122" (3.10mm)
Current Rating (Amps)
-
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
-
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Board or Cable |
| Series | Micro-MaTch |
| Features | - |
| Packaging | Cut Tape (CT); Bulk |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose |
| Contact Type | Forked |
| Contact Shape | - |
| Mounting Type | Through Hole |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 100VDC |
| Contact Material | Phosphor Bronze |
| Insulation Color | Red |
| Insulation Height | 0.157" (4.00mm) |
| Ingress Protection | - |
| Base Product Number | 215079 |
| Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Number of Positions | 10 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.122" (3.10mm) |
| Current Rating (Amps) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | - |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - |
