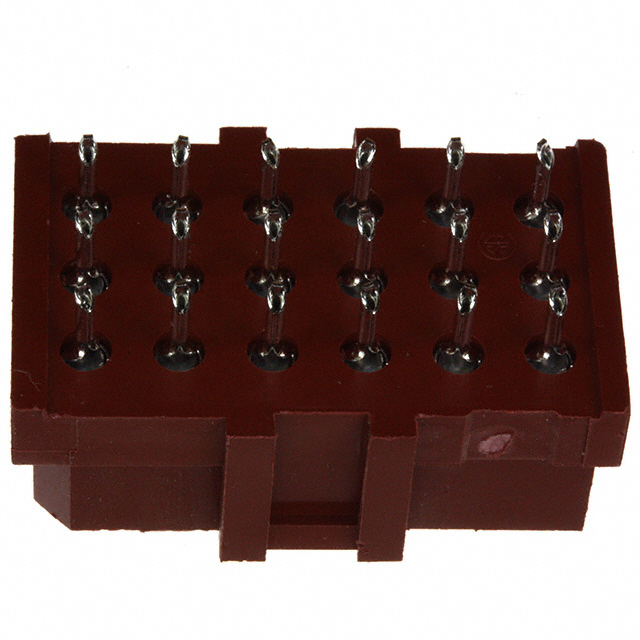

TE Connectivity AMP Connectors 207530-4
Images are for reference only
Manufacturer
Manufacturer No
207530-4
Packaging
Tray
Description
CONN HDR 18POS 0.197 GOLD PCB
Detailed Description
18 Position Header Connector 0.197" (5.00mm) Through Hole Gold
Datasheet
Payment
Delivery
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Metrimate
Features
-
Packaging
Tray
Termination
Solder
Applications
-
Contact Type
Female Socket
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
3
Pitch - Mating
0.197" (5.00mm)
Voltage Rating
600V
Contact Material
Phosphor Bronze
Insulation Color
Red
Insulation Height
0.565" (14.35mm)
Ingress Protection
-
Base Product Number
207530
Insulation Material
Polyamide (PA), Nylon
Number of Positions
18
Row Spacing - Mating
0.197" (5.00mm)
Contact Finish - Post
Tin-Lead
Contact Length - Post
0.181" (4.60mm)
Current Rating (Amps)
7.5A
Operating Temperature
-55°C ~ 130°C
Mated Stacking Heights
-
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
150.0µin (3.81µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Metrimate |
| Features | - |
| Packaging | Tray |
| Termination | Solder |
| Applications | - |
| Contact Type | Female Socket |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 3 |
| Pitch - Mating | 0.197" (5.00mm) |
| Voltage Rating | 600V |
| Contact Material | Phosphor Bronze |
| Insulation Color | Red |
| Insulation Height | 0.565" (14.35mm) |
| Ingress Protection | - |
| Base Product Number | 207530 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 18 |
| Row Spacing - Mating | 0.197" (5.00mm) |
| Contact Finish - Post | Tin-Lead |
| Contact Length - Post | 0.181" (4.60mm) |
| Current Rating (Amps) | 7.5A |
| Operating Temperature | -55°C ~ 130°C |
| Mated Stacking Heights | - |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
