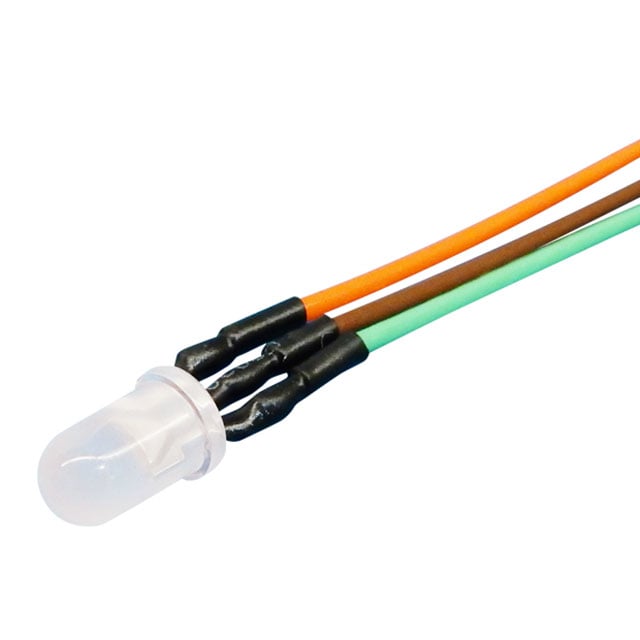

SunLED XLMDKDG59MW3.15
Images are for reference only
Manufacturer
Manufacturer No
XLMDKDG59MW3.15
Availability
In Stock
Package
Radial - 3 Leads
Packaging
Bulk
Description
LED GRN/RED DIFFUSED T-1 3/4 T/H
Detailed Description
Green, Red 525nm Green, 630nm Red LED Indication - Discrete 3.3V Green, 1.95V Red Radial - 3 Leads
Datasheet
Payment
Delivery
Mfr
SunLED
Color
Green, Red
Series
-
Features
-
Lens Size
5mm, T-1 3/4
Packaging
Bulk
Lens Color
White
Lens Style
Round with Domed Top
Height (Max)
10.10mm
Configuration
Common Cathode
Mounting Type
Through Hole
Viewing Angle
30°
Current - Test
20mA Green, 20mA Red
Package / Case
Radial - 3 Leads
Size / Dimension
-
Lens Transparency
Diffused
Wavelength - Peak
515nm Green, 645nm Red
Base Product Number
XLMDKDG59
Millicandela Rating
1495mcd Green, 1195mcd Red
Wavelength - Dominant
525nm Green, 630nm Red
Supplier Device Package
T-1 3/4 (5mm)
Voltage - Forward (Vf) (Typ)
3.3V Green, 1.95V Red
| Attribute | Value |
|---|---|
| Mfr | SunLED |
| Color | Green, Red |
| Series | - |
| Features | - |
| Lens Size | 5mm, T-1 3/4 |
| Packaging | Bulk |
| Lens Color | White |
| Lens Style | Round with Domed Top |
| Height (Max) | 10.10mm |
| Configuration | Common Cathode |
| Mounting Type | Through Hole |
| Viewing Angle | 30° |
| Current - Test | 20mA Green, 20mA Red |
| Package / Case | Radial - 3 Leads |
| Size / Dimension | - |
| Lens Transparency | Diffused |
| Wavelength - Peak | 515nm Green, 645nm Red |
| Base Product Number | XLMDKDG59 |
| Millicandela Rating | 1495mcd Green, 1195mcd Red |
| Wavelength - Dominant | 525nm Green, 630nm Red |
| Supplier Device Package | T-1 3/4 (5mm) |
| Voltage - Forward (Vf) (Typ) | 3.3V Green, 1.95V Red |
