Step1: Product

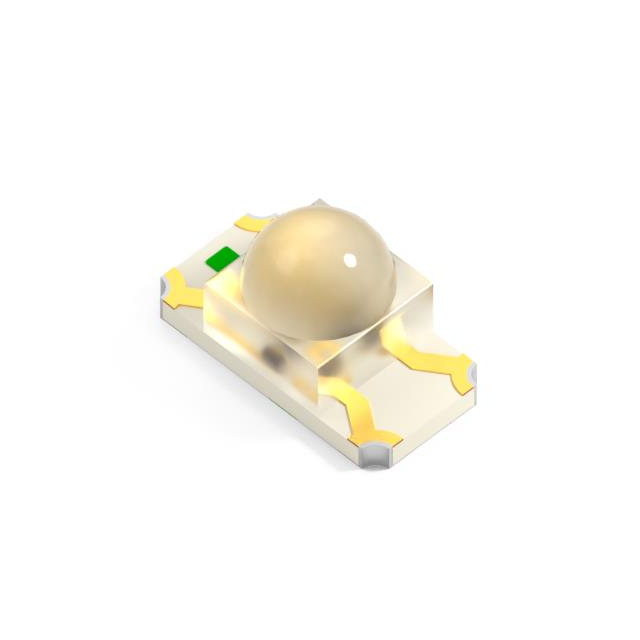

SunLED XZM2CRKM2DG55W-8
Images are for reference only
Manufacturer
Manufacturer No
XZM2CRKM2DG55W-8
Quantity
1
Availability
In Stock
Package
1206 (3216 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
LED GREEN/RED CLEAR 4SMD
Detailed Description
Green, Red 525nm Green, 625nm Red LED Indication - Discrete 3.2V Green, 2.2V Red 1206 (3216 Metric)
Datasheet
Payment
Delivery
Mfr
SunLED
Color
Green, Red
Series
-
Features
-
Lens Size
1.60mm Dia
Packaging
Tape & Reel (TR); Cut Tape (CT)
Lens Color
Colorless
Lens Style
Round with Domed Top
Height (Max)
2.00mm
Configuration
Independent
Mounting Type
Surface Mount
Viewing Angle
30°
Current - Test
20mA
Package / Case
1206 (3216 Metric)
Size / Dimension
3.20mm L x 1.60mm W
Lens Transparency
Clear
Wavelength - Peak
520nm Green, 640nm Red
Base Product Number
XZM2CRKM2
Millicandela Rating
1295mcd Green, 1295mcd Red
Wavelength - Dominant
525nm Green, 625nm Red
Supplier Device Package
4-SMD
Voltage - Forward (Vf) (Typ)
3.2V Green, 2.2V Red
| Attribute | Value |
|---|---|
| Mfr | SunLED |
| Color | Green, Red |
| Series | - |
| Features | - |
| Lens Size | 1.60mm Dia |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Lens Color | Colorless |
| Lens Style | Round with Domed Top |
| Height (Max) | 2.00mm |
| Configuration | Independent |
| Mounting Type | Surface Mount |
| Viewing Angle | 30° |
| Current - Test | 20mA |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Lens Transparency | Clear |
| Wavelength - Peak | 520nm Green, 640nm Red |
| Base Product Number | XZM2CRKM2 |
| Millicandela Rating | 1295mcd Green, 1295mcd Red |
| Wavelength - Dominant | 525nm Green, 625nm Red |
| Supplier Device Package | 4-SMD |
| Voltage - Forward (Vf) (Typ) | 3.2V Green, 2.2V Red |
