Step1: Product

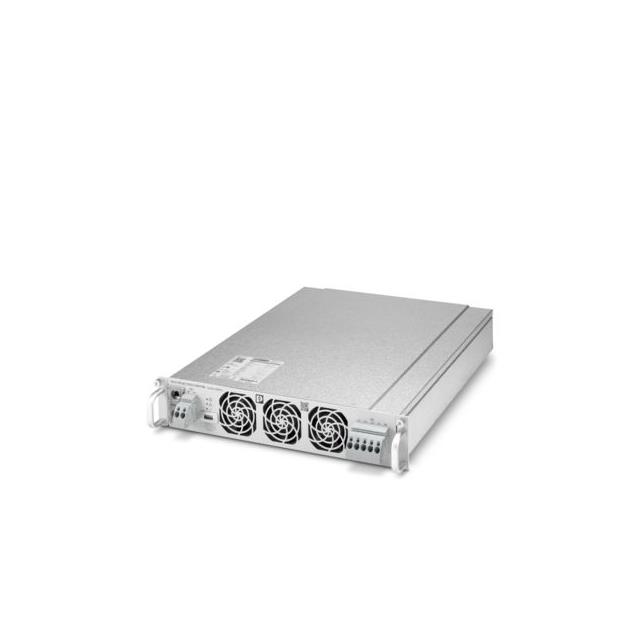

Phoenix Contact 1560712
Images are for reference only
Manufacturer
Manufacturer No
1560712
Packaging
Bulk
Description
Interconnect Misc
Detailed Description
Enclosed AC DC Converters 1 Output 260 ~ 530 VAC (3 Phase), 200 ~ 1000 VDC Input
Datasheet
Payment
Delivery
Mfr
Phoenix Contact
Type
Enclosed
Series
-
Features
DC Input Capable, Universal Input
Packaging
Bulk
Efficiency
96%
Applications
ITE (Commercial)
Mounting Type
Rack Mount
Power (Watts)
20kW
Approval Agency
TUV SUD
Standard Number
-
Voltage - Input
260 ~ 530 VAC (3 Phase), 200 ~ 1000 VDC
Size / Dimension
20.47" L x 19.02" W x 3.50" H (520.0mm x 483.0mm x 89.0mm)
Number of Outputs
1
Current - Output 1
73 A
Current - Output 2
73 A
Current - Output 3
73 A
Current - Output 4
73 A
Current - Output 5
73 A
Current - Output 6
73 A
Voltage - Output 1
-
Voltage - Output 2
-
Voltage - Output 3
-
Voltage - Output 4
-
Voltage - Output 5
-
Voltage - Output 6
-
Voltage - Isolation
2.121 kV
Minimum Load Required
-
Operating Temperature
-40°C ~ 70°C
| Attribute | Value |
|---|---|
| Mfr | Phoenix Contact |
| Type | Enclosed |
| Series | - |
| Features | DC Input Capable, Universal Input |
| Packaging | Bulk |
| Efficiency | 96% |
| Applications | ITE (Commercial) |
| Mounting Type | Rack Mount |
| Power (Watts) | 20kW |
| Approval Agency | TUV SUD |
| Standard Number | - |
| Voltage - Input | 260 ~ 530 VAC (3 Phase), 200 ~ 1000 VDC |
| Size / Dimension | 20.47" L x 19.02" W x 3.50" H (520.0mm x 483.0mm x 89.0mm) |
| Number of Outputs | 1 |
| Current - Output 1 | 73 A |
| Current - Output 2 | 73 A |
| Current - Output 3 | 73 A |
| Current - Output 4 | 73 A |
| Current - Output 5 | 73 A |
| Current - Output 6 | 73 A |
| Voltage - Output 1 | - |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Voltage - Isolation | 2.121 kV |
| Minimum Load Required | - |
| Operating Temperature | -40°C ~ 70°C |
