Step1: Product

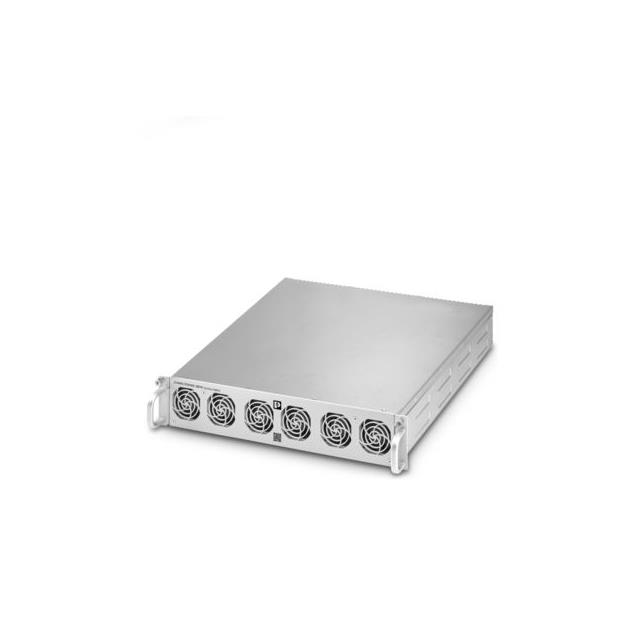

Phoenix Contact 1158272
Images are for reference only
Manufacturer
Manufacturer No
1158272
Packaging
Bulk
Description
AC/DC CONVERTER 150 - 500V 20KW
Detailed Description
Enclosed AC DC Converters 1 Output 150 ~ 500V 340 ~ 440 VAC, 300 ~ 600 VDC Input
Datasheet
Payment
Delivery
Mfr
Phoenix Contact
Type
Enclosed
Series
CHARX
Features
DC Input Capable, IP20, Universal Input
Packaging
Bulk
Efficiency
97%
Applications
ITE (Commercial)
Mounting Type
Rack Mount
Power (Watts)
20kW
Approval Agency
CB, EAC
Standard Number
-
Voltage - Input
340 ~ 440 VAC, 300 ~ 600 VDC
Size / Dimension
21.26" L x 19.02" W x 3.50" H (540.0mm x 483.0mm x 89.0mm)
Number of Outputs
1
Current - Output 1
66 A
Current - Output 2
66 A
Current - Output 3
66 A
Current - Output 4
66 A
Current - Output 5
66 A
Current - Output 6
66 A
Voltage - Output 1
150 ~ 500V
Voltage - Output 2
-
Voltage - Output 3
-
Voltage - Output 4
-
Voltage - Output 5
-
Voltage - Output 6
-
Voltage - Isolation
4.24 kV
Minimum Load Required
-
Operating Temperature
-25°C ~ 60°C
| Attribute | Value |
|---|---|
| Mfr | Phoenix Contact |
| Type | Enclosed |
| Series | CHARX |
| Features | DC Input Capable, IP20, Universal Input |
| Packaging | Bulk |
| Efficiency | 97% |
| Applications | ITE (Commercial) |
| Mounting Type | Rack Mount |
| Power (Watts) | 20kW |
| Approval Agency | CB, EAC |
| Standard Number | - |
| Voltage - Input | 340 ~ 440 VAC, 300 ~ 600 VDC |
| Size / Dimension | 21.26" L x 19.02" W x 3.50" H (540.0mm x 483.0mm x 89.0mm) |
| Number of Outputs | 1 |
| Current - Output 1 | 66 A |
| Current - Output 2 | 66 A |
| Current - Output 3 | 66 A |
| Current - Output 4 | 66 A |
| Current - Output 5 | 66 A |
| Current - Output 6 | 66 A |
| Voltage - Output 1 | 150 ~ 500V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Voltage - Isolation | 4.24 kV |
| Minimum Load Required | - |
| Operating Temperature | -25°C ~ 60°C |
