Step1: Product

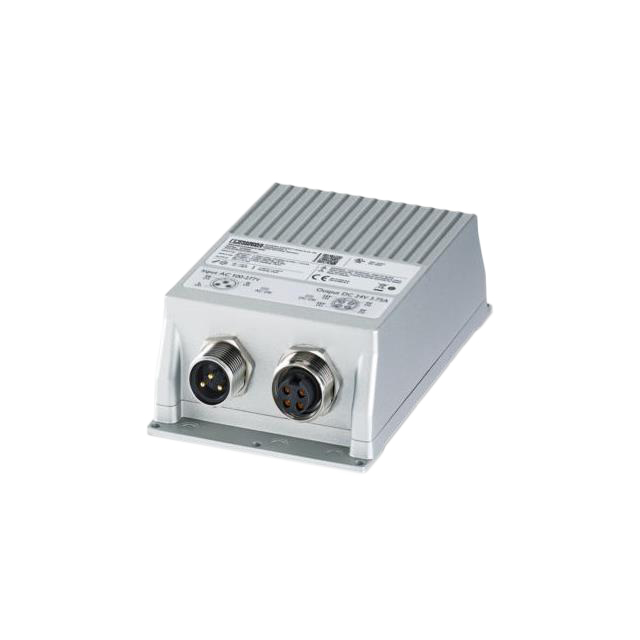

Phoenix Contact 1278302
Images are for reference only
Manufacturer
Manufacturer No
1278302
Packaging
Bulk
Description
AC/DC CONVERTER 24V 90W
Detailed Description
Enclosed AC DC Converters 1 Output 24V 100 ~ 277 VAC, 110 ~ 250 VDC Input
Datasheet
Payment
Delivery
Mfr
Phoenix Contact
Type
Enclosed
Series
TRIO
Features
DC Input Capable, IP67, PFC, Universal Input
Packaging
Bulk
Efficiency
94%
Applications
Laboratory
Mounting Type
Chassis Mount
Power (Watts)
90W
Approval Agency
cUL, cULus, UL
Standard Number
61010-1
Voltage - Input
100 ~ 277 VAC, 110 ~ 250 VDC
Size / Dimension
6.38" L x 3.94" W x 2.09" H (162.0mm x 100.0mm x 53.0mm)
Number of Outputs
1
Current - Output 1
3.75 A
Current - Output 2
3.75 A
Current - Output 3
3.75 A
Current - Output 4
3.75 A
Current - Output 5
3.75 A
Current - Output 6
3.75 A
Voltage - Output 1
24V
Voltage - Output 2
-
Voltage - Output 3
-
Voltage - Output 4
-
Voltage - Output 5
-
Voltage - Output 6
-
Voltage - Isolation
4 kV
Minimum Load Required
-
Operating Temperature
-25°C ~ 70°C (With Derating)
| Attribute | Value |
|---|---|
| Mfr | Phoenix Contact |
| Type | Enclosed |
| Series | TRIO |
| Features | DC Input Capable, IP67, PFC, Universal Input |
| Packaging | Bulk |
| Efficiency | 94% |
| Applications | Laboratory |
| Mounting Type | Chassis Mount |
| Power (Watts) | 90W |
| Approval Agency | cUL, cULus, UL |
| Standard Number | 61010-1 |
| Voltage - Input | 100 ~ 277 VAC, 110 ~ 250 VDC |
| Size / Dimension | 6.38" L x 3.94" W x 2.09" H (162.0mm x 100.0mm x 53.0mm) |
| Number of Outputs | 1 |
| Current - Output 1 | 3.75 A |
| Current - Output 2 | 3.75 A |
| Current - Output 3 | 3.75 A |
| Current - Output 4 | 3.75 A |
| Current - Output 5 | 3.75 A |
| Current - Output 6 | 3.75 A |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Voltage - Isolation | 4 kV |
| Minimum Load Required | - |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
