Step1: Product

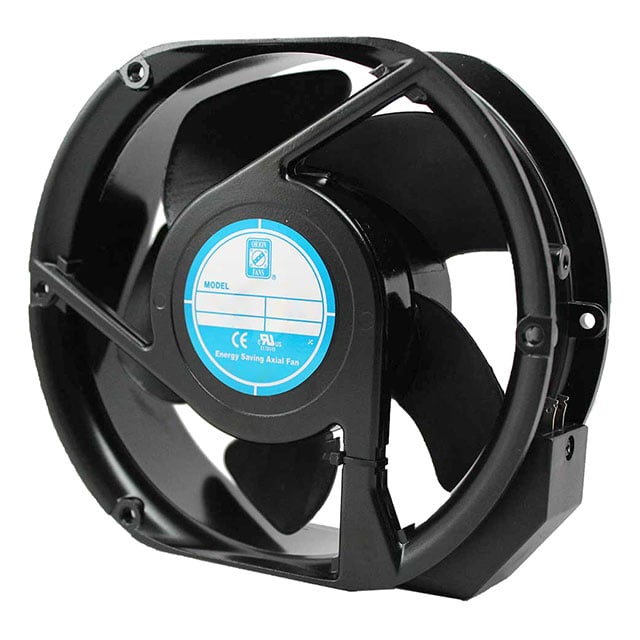

Orion Fans OA172EC-UR-1TB
Images are for reference only
Manufacturer
Manufacturer No
OA172EC-UR-1TB
Packaging
Box
Description
EC FAN 172X152X51.6MM 90-265VAC
Detailed Description
Fan Tubeaxial 110/220VAC Rectangular/Rounded - 172mm L x 152mm H Ball 220.0 CFM (6.16m³/min) 2 Terminals
Datasheet
Payment
Delivery
RPM
3000 RPM
Noise
55.0dB
Width
51.60mm
Series
OA172EC
Weight
1.5 lbs (680.4 g)
Air Flow
220.0 CFM (6.16m³/min)
Fan Type
Tubeaxial
Features
Dual Voltage, Electronic Commutation (EC)
Packaging
Box
Termination
2 Terminals
Bearing Type
Ball
Manufacturer
Orion Fans
Power (Watts)
12.50W
Voltage Range
90 ~ 265VAC
Approval Agency
CE, cURus, TUV, UR
Static Pressure
0.800 in H2O (199.3 Pa)
Voltage - Rated
110/220VAC
Lifetime @ Temp.
50000 Hrs @ 40°C
Material - Blade
Polybutylene Terephthalate (PBT)
Material - Frame
Aluminum
Size / Dimension
Rectangular/Rounded - 172mm L x 152mm H
Ingress Protection
-
Base Product Number
OA172EC
Current Rating (Amps)
-
Operating Temperature
14 ~ 158°F (-10 ~ 70°C)
| Attribute | Value |
|---|---|
| RPM | 3000 RPM |
| Noise | 55.0dB |
| Width | 51.60mm |
| Series | OA172EC |
| Weight | 1.5 lbs (680.4 g) |
| Air Flow | 220.0 CFM (6.16m³/min) |
| Fan Type | Tubeaxial |
| Features | Dual Voltage, Electronic Commutation (EC) |
| Packaging | Box |
| Termination | 2 Terminals |
| Bearing Type | Ball |
| Manufacturer | Orion Fans |
| Power (Watts) | 12.50W |
| Voltage Range | 90 ~ 265VAC |
| Approval Agency | CE, cURus, TUV, UR |
| Static Pressure | 0.800 in H2O (199.3 Pa) |
| Voltage - Rated | 110/220VAC |
| Lifetime @ Temp. | 50000 Hrs @ 40°C |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Size / Dimension | Rectangular/Rounded - 172mm L x 152mm H |
| Ingress Protection | - |
| Base Product Number | OA172EC |
| Current Rating (Amps) | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
