Step1: Product

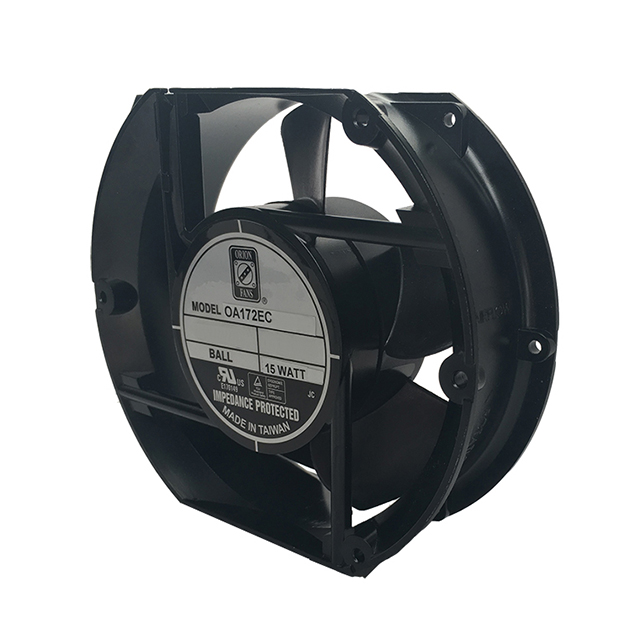

Orion Fans OA172EC-22-1TBIP68A
Images are for reference only
Manufacturer
Manufacturer No
OA172EC-22-1TBIP68A
Packaging
Box
Description
FAN 172X150X51MM 230VAC IP68ATEX
Detailed Description
Fan Tubeaxial 230VAC Rectangular/Rounded - 172mm L x 150mm H Ball 220.0 CFM (6.16m³/min) 2 Terminals
Datasheet
Payment
Delivery
RPM
3000 RPM
Noise
57.0dB
Width
51.00mm
Series
OA172EC
Weight
1.5 lbs (680.4 g)
Air Flow
220.0 CFM (6.16m³/min)
Fan Type
Tubeaxial
Features
Electronic Commutation (EC), Thermal Overload Protector (TOP)
Packaging
Box
Termination
2 Terminals
Bearing Type
Ball
Manufacturer
Orion Fans
Power (Watts)
15.00W
Voltage Range
207 ~ 253VAC
Approval Agency
ATEX, CE, cURus, UR
Static Pressure
0.620 in H2O (154.4 Pa)
Voltage - Rated
230VAC
Lifetime @ Temp.
50000 Hrs @ 40°C
Material - Blade
Polybutylene Terephthalate (PBT)
Material - Frame
Aluminum
Size / Dimension
Rectangular/Rounded - 172mm L x 150mm H
Ingress Protection
IP68 - Dust Tight, Waterproof
Base Product Number
OA172EC
Current Rating (Amps)
0.130A
Operating Temperature
-4 ~ 158°F (-20 ~ 70°C)
| Attribute | Value |
|---|---|
| RPM | 3000 RPM |
| Noise | 57.0dB |
| Width | 51.00mm |
| Series | OA172EC |
| Weight | 1.5 lbs (680.4 g) |
| Air Flow | 220.0 CFM (6.16m³/min) |
| Fan Type | Tubeaxial |
| Features | Electronic Commutation (EC), Thermal Overload Protector (TOP) |
| Packaging | Box |
| Termination | 2 Terminals |
| Bearing Type | Ball |
| Manufacturer | Orion Fans |
| Power (Watts) | 15.00W |
| Voltage Range | 207 ~ 253VAC |
| Approval Agency | ATEX, CE, cURus, UR |
| Static Pressure | 0.620 in H2O (154.4 Pa) |
| Voltage - Rated | 230VAC |
| Lifetime @ Temp. | 50000 Hrs @ 40°C |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Base Product Number | OA172EC |
| Current Rating (Amps) | 0.130A |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
