Step1: Product

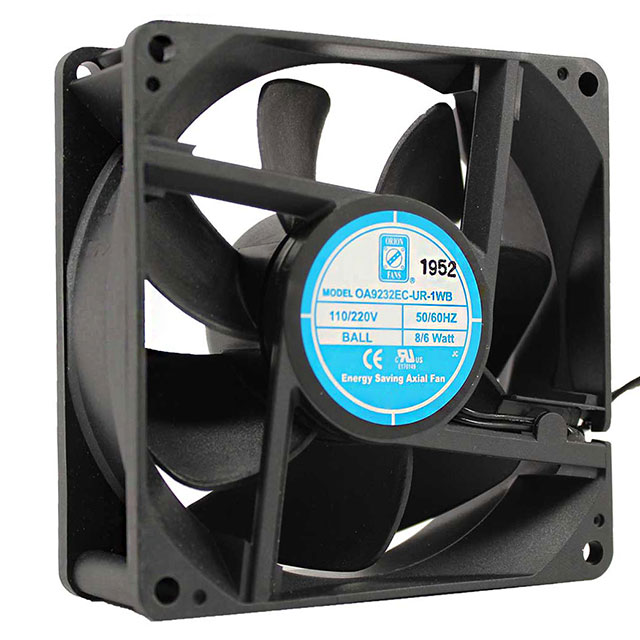

Orion Fans OA9232EC-UR-1WB
Images are for reference only
Manufacturer
Manufacturer No
OA9232EC-UR-1WB
Packaging
Box
Description
EC FAN 92X32MM 85-265VAC 56CFM
Detailed Description
Fan Tubeaxial 110/220VAC Square - 92mm L x 92mm H Ball 58.0 CFM (1.62m³/min) 2 Wire Leads
Datasheet
Payment
Delivery
RPM
3000 RPM
Noise
43.0dB
Width
32.00mm
Series
OA9232EC
Weight
0.325 lb (147.42 g)
Air Flow
58.0 CFM (1.62m³/min)
Fan Type
Tubeaxial
Features
Dual Voltage, Electronic Commutation (EC)
Packaging
Box
Termination
2 Wire Leads
Bearing Type
Ball
Manufacturer
Orion Fans
Power (Watts)
2.10W
Voltage Range
85 ~ 265VAC
Approval Agency
CE, cURus, TUV, UR
Static Pressure
0.230 in H2O (57.3 Pa)
Voltage - Rated
110/220VAC
Lifetime @ Temp.
70000 Hrs @ 40°C
Material - Blade
Polybutylene Terephthalate (PBT)
Material - Frame
Polybutylene Terephthalate (PBT)
Size / Dimension
Square - 92mm L x 92mm H
Ingress Protection
-
Base Product Number
OA9232EC
Current Rating (Amps)
-
Operating Temperature
14 ~ 158°F (-10 ~ 70°C)
| Attribute | Value |
|---|---|
| RPM | 3000 RPM |
| Noise | 43.0dB |
| Width | 32.00mm |
| Series | OA9232EC |
| Weight | 0.325 lb (147.42 g) |
| Air Flow | 58.0 CFM (1.62m³/min) |
| Fan Type | Tubeaxial |
| Features | Dual Voltage, Electronic Commutation (EC) |
| Packaging | Box |
| Termination | 2 Wire Leads |
| Bearing Type | Ball |
| Manufacturer | Orion Fans |
| Power (Watts) | 2.10W |
| Voltage Range | 85 ~ 265VAC |
| Approval Agency | CE, cURus, TUV, UR |
| Static Pressure | 0.230 in H2O (57.3 Pa) |
| Voltage - Rated | 110/220VAC |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Size / Dimension | Square - 92mm L x 92mm H |
| Ingress Protection | - |
| Base Product Number | OA9232EC |
| Current Rating (Amps) | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
