Step1: Product

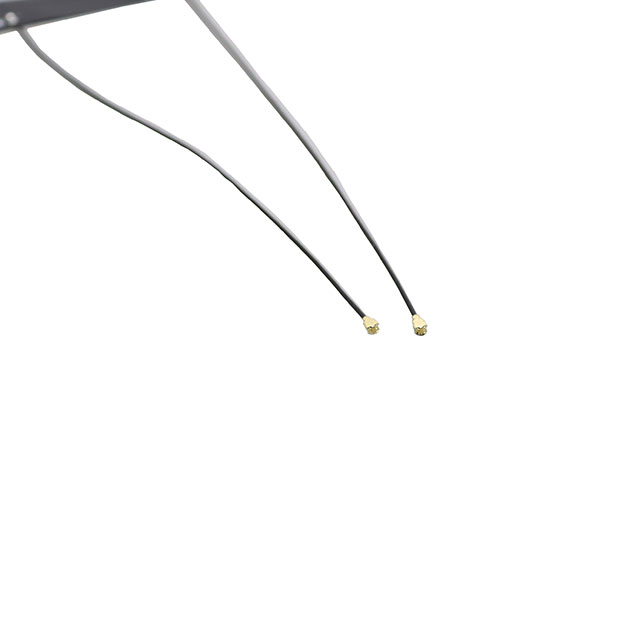

Molex 2133530200
Images are for reference only
Manufacturer
Manufacturer No
2133530200
Availability
In Stock
Packaging
Bulk
Description
LTE/GPS COMBO FLEXIBLE ANTENNA 2
Detailed Description
RF ANTENNA BeiDou, GLONASS, GPS, LTE, UWB Flat Patch U.FL (UMCC), I-PEX MHF1 Adhesive
Datasheet
Payment
Delivery
Gain
2.5dBi, 2.3dBi, 2.3dBi, 5.4dBi, 5.4dBi, 4.5dBi, 7dBi
VSWR
-
Series
-
Features
Cable - 200mm
Packaging
Bulk
Return Loss
-5dB, -10dB
Termination
U.FL (UMCC), I-PEX MHF1
Antenna Type
Flat Patch
Applications
BeiDou, GLONASS, GPS, LTE, UWB
Height (Max)
0.004" (0.10mm)
Manufacturer
Molex
Mounting Type
Adhesive
Frequency Group
Wide Band
Frequency Range
698MHz ~ 960MHz, 1.4GHz ~ 1.5GHz, 1.5GHz ~ 1.7GHz, 1.558GHz ~ 1.563GHz, 1.573GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz, 1.7GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.9GHz ~ 8.5GHz
Number of Bands
10
Ingress Protection
-
RF Family/Standard
Cellular, Navigation
Base Product Number
213353
Frequency (Center/Band)
829MHz, 1.45GHz, 1.6GHz, 1.5605GHz, 1.5745GHz, 1.602GHz, 2.2GHz, 3.75GHz, 4.7GHz, 7.2GHz
| Attribute | Value |
|---|---|
| Gain | 2.5dBi, 2.3dBi, 2.3dBi, 5.4dBi, 5.4dBi, 4.5dBi, 7dBi |
| VSWR | - |
| Series | - |
| Features | Cable - 200mm |
| Packaging | Bulk |
| Return Loss | -5dB, -10dB |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Antenna Type | Flat Patch |
| Applications | BeiDou, GLONASS, GPS, LTE, UWB |
| Height (Max) | 0.004" (0.10mm) |
| Manufacturer | Molex |
| Mounting Type | Adhesive |
| Frequency Group | Wide Band |
| Frequency Range | 698MHz ~ 960MHz, 1.4GHz ~ 1.5GHz, 1.5GHz ~ 1.7GHz, 1.558GHz ~ 1.563GHz, 1.573GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz, 1.7GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.9GHz ~ 8.5GHz |
| Number of Bands | 10 |
| Ingress Protection | - |
| RF Family/Standard | Cellular, Navigation |
| Base Product Number | 213353 |
| Frequency (Center/Band) | 829MHz, 1.45GHz, 1.6GHz, 1.5605GHz, 1.5745GHz, 1.602GHz, 2.2GHz, 3.75GHz, 4.7GHz, 7.2GHz |
