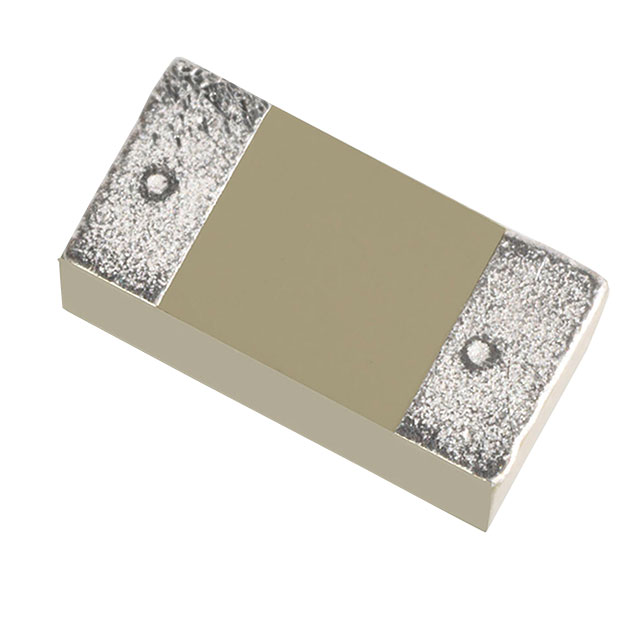

Molex 2119640001
Images are for reference only
Manufacturer
Manufacturer No
2119640001
Quantity
55
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
2.4/5GHZ LTCC ANT 3.2X1.6MM
Detailed Description
RF ANTENNA Bluetooth, Wi-Fi, Zigbee™ Ceramic Patch Solder Surface Mount
Datasheet
Payment
Delivery
Gain
2.1dBi, 2.2dBi, 2.7dBi
VSWR
-
Series
211964
Features
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Return Loss
-5dB, -6dB
Termination
Solder
Antenna Type
Ceramic Patch
Applications
Bluetooth, Wi-Fi, Zigbee™
Height (Max)
0.047" (1.20mm)
Manufacturer
Molex
Mounting Type
Surface Mount
Frequency Group
UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency Range
2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.85GHz
Number of Bands
2
Ingress Protection
-
RF Family/Standard
802.15.4, Bluetooth, WiFi
Base Product Number
211964
Frequency (Center/Band)
2.44GHz, 5.5GHz
| Attribute | Value |
|---|---|
| Gain | 2.1dBi, 2.2dBi, 2.7dBi |
| VSWR | - |
| Series | 211964 |
| Features | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Return Loss | -5dB, -6dB |
| Termination | Solder |
| Antenna Type | Ceramic Patch |
| Applications | Bluetooth, Wi-Fi, Zigbee™ |
| Height (Max) | 0.047" (1.20mm) |
| Manufacturer | Molex |
| Mounting Type | Surface Mount |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency Range | 2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.85GHz |
| Number of Bands | 2 |
| Ingress Protection | - |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Base Product Number | 211964 |
| Frequency (Center/Band) | 2.44GHz, 5.5GHz |
