Step1: Product

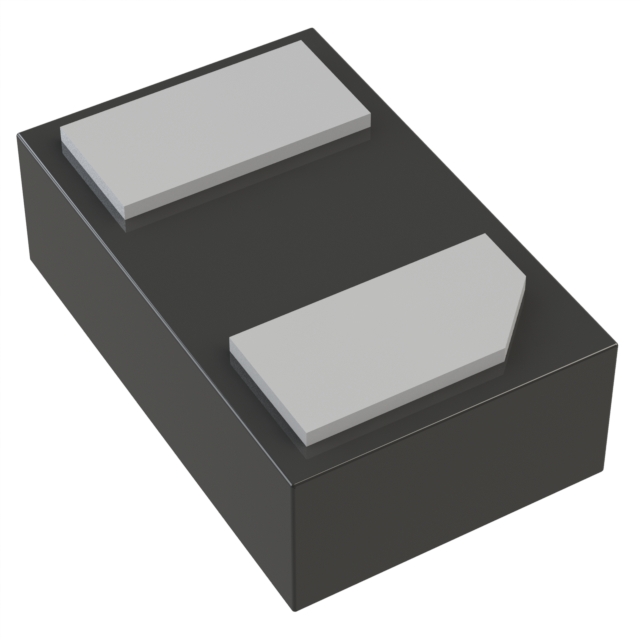

MCC (Micro Commercial Components) ESD1551P6-TP
Images are for reference only
Manufacturer
Manufacturer No
ESD1551P6-TP
Availability
In Stock
Package
0603 (1610 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TVS DIODE 15VWM 30VC DFN16102
Detailed Description
30V Clamp 60A (8/20µs) Ipp Tvs Diode Surface Mount DFN1610-2
Datasheet
Payment
Delivery
Mfr
MCC (Micro Commercial Components)
Type
Zener
Series
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Applications
General Purpose
Mounting Type
Surface Mount
Package / Case
0603 (1610 Metric)
Power - Peak Pulse
1800W (1.8kW)
Base Product Number
ESD1551
Operating Temperature
-55°C ~ 125°C (TJ)
Power Line Protection
No
Capacitance @ Frequency
325pF @ 1MHz
Supplier Device Package
DFN1610-2
Unidirectional Channels
1
Voltage - Breakdown (Min)
15.5V
Voltage - Clamping (Max) @ Ipp
30V
Voltage - Reverse Standoff (Typ)
15V (Max)
Current - Peak Pulse (10/1000µs)
60A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | MCC (Micro Commercial Components) |
| Type | Zener |
| Series | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1610 Metric) |
| Power - Peak Pulse | 1800W (1.8kW) |
| Base Product Number | ESD1551 |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Power Line Protection | No |
| Capacitance @ Frequency | 325pF @ 1MHz |
| Supplier Device Package | DFN1610-2 |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 15.5V |
| Voltage - Clamping (Max) @ Ipp | 30V |
| Voltage - Reverse Standoff (Typ) | 15V (Max) |
| Current - Peak Pulse (10/1000µs) | 60A (8/20µs) |
