Step1: Product

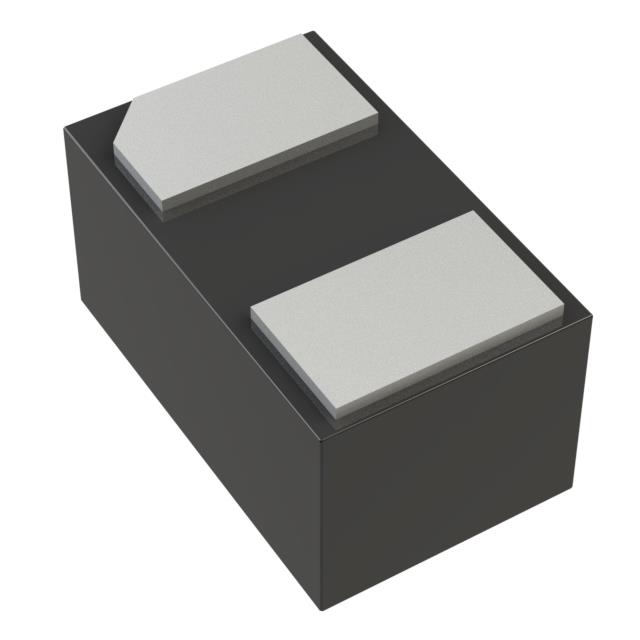

MCC (Micro Commercial Components) ESD24VLB-TP
Images are for reference only
Manufacturer
Manufacturer No
ESD24VLB-TP
Quantity
9,310
Availability
In Stock
Package
0402 (1006 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TVS DIODE 24VWM 40VC 2DFN1006
Detailed Description
40V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount 2-DFN1006
Datasheet
Payment
Delivery
Mfr
MCC (Micro Commercial Components)
Type
Zener
Series
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Applications
General Purpose
Mounting Type
Surface Mount
Package / Case
0402 (1006 Metric)
Power - Peak Pulse
300W
Base Product Number
ESD24
Operating Temperature
-55°C ~ 125°C (TJ)
Power Line Protection
No
Bidirectional Channels
1
Capacitance @ Frequency
20pF @ 1MHz (Max)
Supplier Device Package
2-DFN1006
Voltage - Breakdown (Min)
27V
Voltage - Clamping (Max) @ Ipp
40V
Voltage - Reverse Standoff (Typ)
24V (Max)
Current - Peak Pulse (10/1000µs)
5A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | MCC (Micro Commercial Components) |
| Type | Zener |
| Series | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1006 Metric) |
| Power - Peak Pulse | 300W |
| Base Product Number | ESD24 |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Power Line Protection | No |
| Bidirectional Channels | 1 |
| Capacitance @ Frequency | 20pF @ 1MHz (Max) |
| Supplier Device Package | 2-DFN1006 |
| Voltage - Breakdown (Min) | 27V |
| Voltage - Clamping (Max) @ Ipp | 40V |
| Voltage - Reverse Standoff (Typ) | 24V (Max) |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
