Step1: Product
Infineon Technologies ESD145B1W01005E6327XTSA1

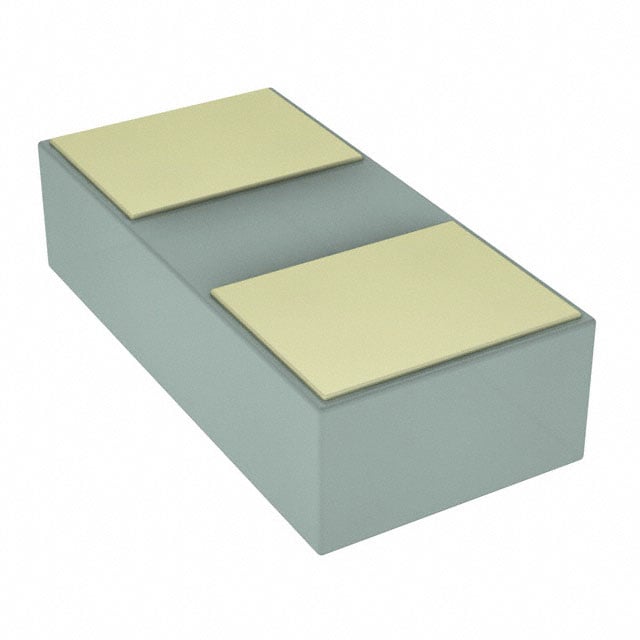

Images are for reference only
Manufacturer
Manufacturer No
ESD145B1W01005E6327XTSA1
Availability
In Stock
Package
01005 (0402 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TVS DIODE 18VWM 5VC P/PGWLL22
Detailed Description
5V (Typ) Clamp 3.5A (8/20µs) Ipp Tvs Diode Surface Mount P/PG-WLL-2-2
Datasheet
Payment
Delivery
Mfr
Infineon Technologies
Type
Zener
Series
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Applications
RF Antenna
Mounting Type
Surface Mount
Package / Case
01005 (0402 Metric)
Power - Peak Pulse
21W
Base Product Number
ESD145
Operating Temperature
-55°C ~ 125°C (TA)
Power Line Protection
No
Bidirectional Channels
1
Capacitance @ Frequency
0.2pF @ 1MHz
Supplier Device Package
P/PG-WLL-2-2
Voltage - Breakdown (Min)
18.5V
Voltage - Clamping (Max) @ Ipp
5V (Typ)
Voltage - Reverse Standoff (Typ)
18V (Max)
Current - Peak Pulse (10/1000µs)
3.5A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | Infineon Technologies |
| Type | Zener |
| Series | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Applications | RF Antenna |
| Mounting Type | Surface Mount |
| Package / Case | 01005 (0402 Metric) |
| Power - Peak Pulse | 21W |
| Base Product Number | ESD145 |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Power Line Protection | No |
| Bidirectional Channels | 1 |
| Capacitance @ Frequency | 0.2pF @ 1MHz |
| Supplier Device Package | P/PG-WLL-2-2 |
| Voltage - Breakdown (Min) | 18.5V |
| Voltage - Clamping (Max) @ Ipp | 5V (Typ) |
| Voltage - Reverse Standoff (Typ) | 18V (Max) |
| Current - Peak Pulse (10/1000µs) | 3.5A (8/20µs) |
