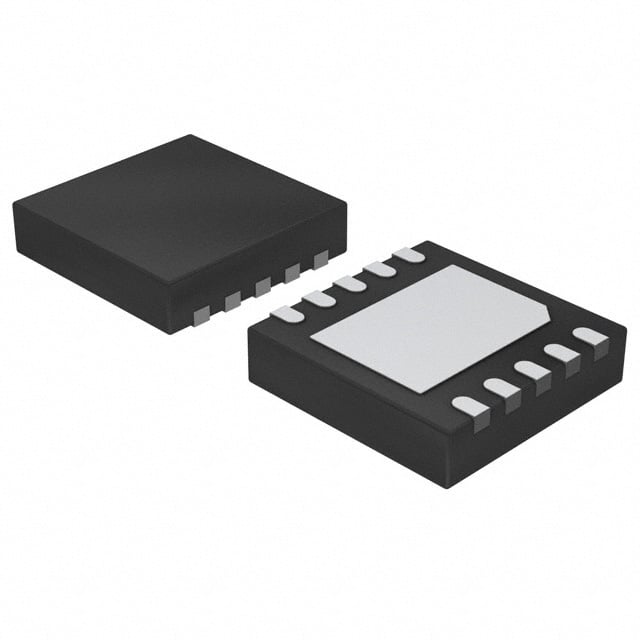

onsemi ESD1014MUTAG
Images are for reference only
Manufacturer
Manufacturer No
ESD1014MUTAG
Date Code
22+
Quantity
3,000
Availability
In Stock
Package
10-UFDFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TVS DIODE 3.3VWM 11VC 10UDFN
Detailed Description
11V Clamp 30A (8/20µs) Ipp Tvs Diode Surface Mount 10-UDFN (2.6x2.6)
Datasheet
Payment
Delivery
Mfr
onsemi
Type
Steering (Rail to Rail)
Grade
-
Series
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Applications
General Purpose
Mounting Type
Surface Mount
Qualification
-
Package / Case
10-UFDFN Exposed Pad
Power - Peak Pulse
450W
Base Product Number
ESD1014
Operating Temperature
-40°C ~ 125°C (TJ)
Power Line Protection
Yes
Capacitance @ Frequency
3.8pF @ 1MHz
Supplier Device Package
10-UDFN (2.6x2.6)
Unidirectional Channels
4
Voltage - Breakdown (Min)
5V
Voltage - Clamping (Max) @ Ipp
11V
Voltage - Reverse Standoff (Typ)
3.3V (Max)
Current - Peak Pulse (10/1000µs)
30A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | onsemi |
| Type | Steering (Rail to Rail) |
| Grade | - |
| Series | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | 10-UFDFN Exposed Pad |
| Power - Peak Pulse | 450W |
| Base Product Number | ESD1014 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Power Line Protection | Yes |
| Capacitance @ Frequency | 3.8pF @ 1MHz |
| Supplier Device Package | 10-UDFN (2.6x2.6) |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | 5V |
| Voltage - Clamping (Max) @ Ipp | 11V |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Current - Peak Pulse (10/1000µs) | 30A (8/20µs) |
