Step1: Product

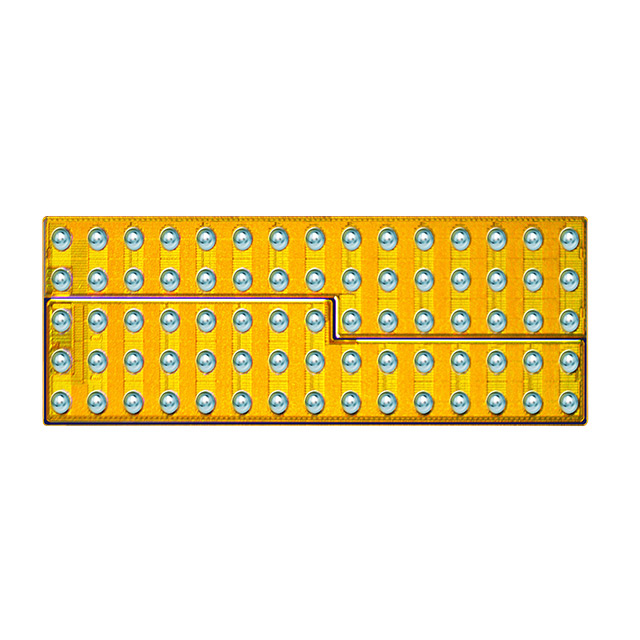

EPC EPC2103
Series
eGaN®
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
GaNFET (Gallium Nitride)
FET Feature
-
Power - Max
-
Manufacturer
EPC
Configuration
2 N-Channel (Half Bridge)
Mounting Type
Surface Mount
Package / Case
Die
Vgs(th) (Max) @ Id
2.5V @ 7mA
Base Product Number
EPC210
Operating Temperature
-40°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
5.5mOhm @ 20A, 5V
Supplier Device Package
Die
Gate Charge (Qg) (Max) @ Vgs
6.5nC @ 5V
Drain to Source Voltage (Vdss)
80V
Input Capacitance (Ciss) (Max) @ Vds
760pF @ 40V
Current - Continuous Drain (Id) @ 25°C
28A
| Attribute | Value |
|---|---|
| Series | eGaN® |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | GaNFET (Gallium Nitride) |
| FET Feature | - |
| Power - Max | - |
| Manufacturer | EPC |
| Configuration | 2 N-Channel (Half Bridge) |
| Mounting Type | Surface Mount |
| Package / Case | Die |
| Vgs(th) (Max) @ Id | 2.5V @ 7mA |
| Base Product Number | EPC210 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 5.5mOhm @ 20A, 5V |
| Supplier Device Package | Die |
| Gate Charge (Qg) (Max) @ Vgs | 6.5nC @ 5V |
| Drain to Source Voltage (Vdss) | 80V |
| Input Capacitance (Ciss) (Max) @ Vds | 760pF @ 40V |
| Current - Continuous Drain (Id) @ 25°C | 28A |
