Step1: Product

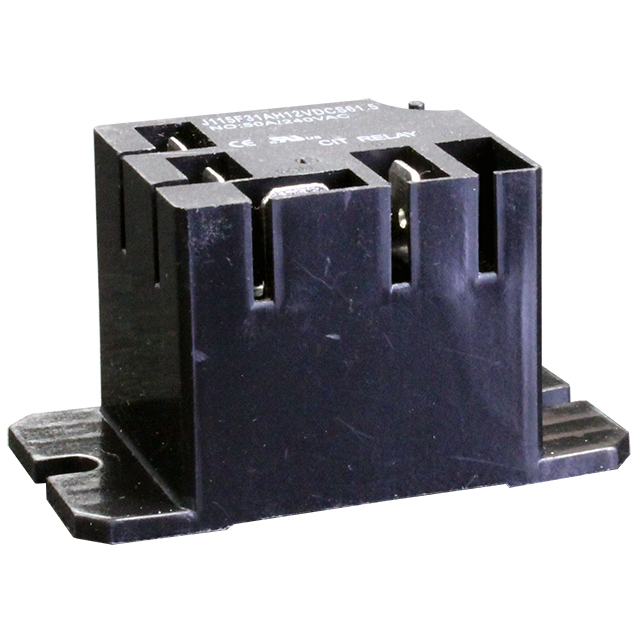

CIT Relay and Switch J115F31AH12VDCS61.5U
Images are for reference only
Manufacturer
Manufacturer No
J115F31AH12VDCS61.5U
Availability
In Stock
Packaging
Tray
Description
RELAY GEN PURPOSE SPST 50A 12V
Detailed Description
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Chassis Mount
Datasheet
Payment
Delivery
Mfr
CIT Relay and Switch
Grade
-
Series
J115F
Features
-
Coil Type
Non Latching
Packaging
Tray
Relay Type
General Purpose
Seal Rating
Sealed - Fully
Coil Current
125 mA
Coil Voltage
12VDC
Contact Form
SPST-NO (1 Form A)
Operate Time
15 ms
Release Time
10 ms
Mounting Type
Chassis Mount
Qualification
-
Approval Agency
cURus
Coil Insulation
Class F
Coil Resistance
96 Ohms
Contact Material
Silver Tin Oxide Indium Oxide (AgSnOInO)
Switching Voltage
277VAC, 110VDC - Max
Termination Style
Quick Connect - 0.187"/0.250"
Base Product Number
J115F31
Load - Max Switching
13850VA, 5500W
Must Operate Voltage
9 VDC
Must Release Voltage
1.2 VDC
Operating Temperature
-55°C ~ 125°C
Contact Rating (Current)
50 A
| Attribute | Value |
|---|---|
| Mfr | CIT Relay and Switch |
| Grade | - |
| Series | J115F |
| Features | - |
| Coil Type | Non Latching |
| Packaging | Tray |
| Relay Type | General Purpose |
| Seal Rating | Sealed - Fully |
| Coil Current | 125 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Mounting Type | Chassis Mount |
| Qualification | - |
| Approval Agency | cURus |
| Coil Insulation | Class F |
| Coil Resistance | 96 Ohms |
| Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Switching Voltage | 277VAC, 110VDC - Max |
| Termination Style | Quick Connect - 0.187"/0.250" |
| Base Product Number | J115F31 |
| Load - Max Switching | 13850VA, 5500W |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operating Temperature | -55°C ~ 125°C |
| Contact Rating (Current) | 50 A |
