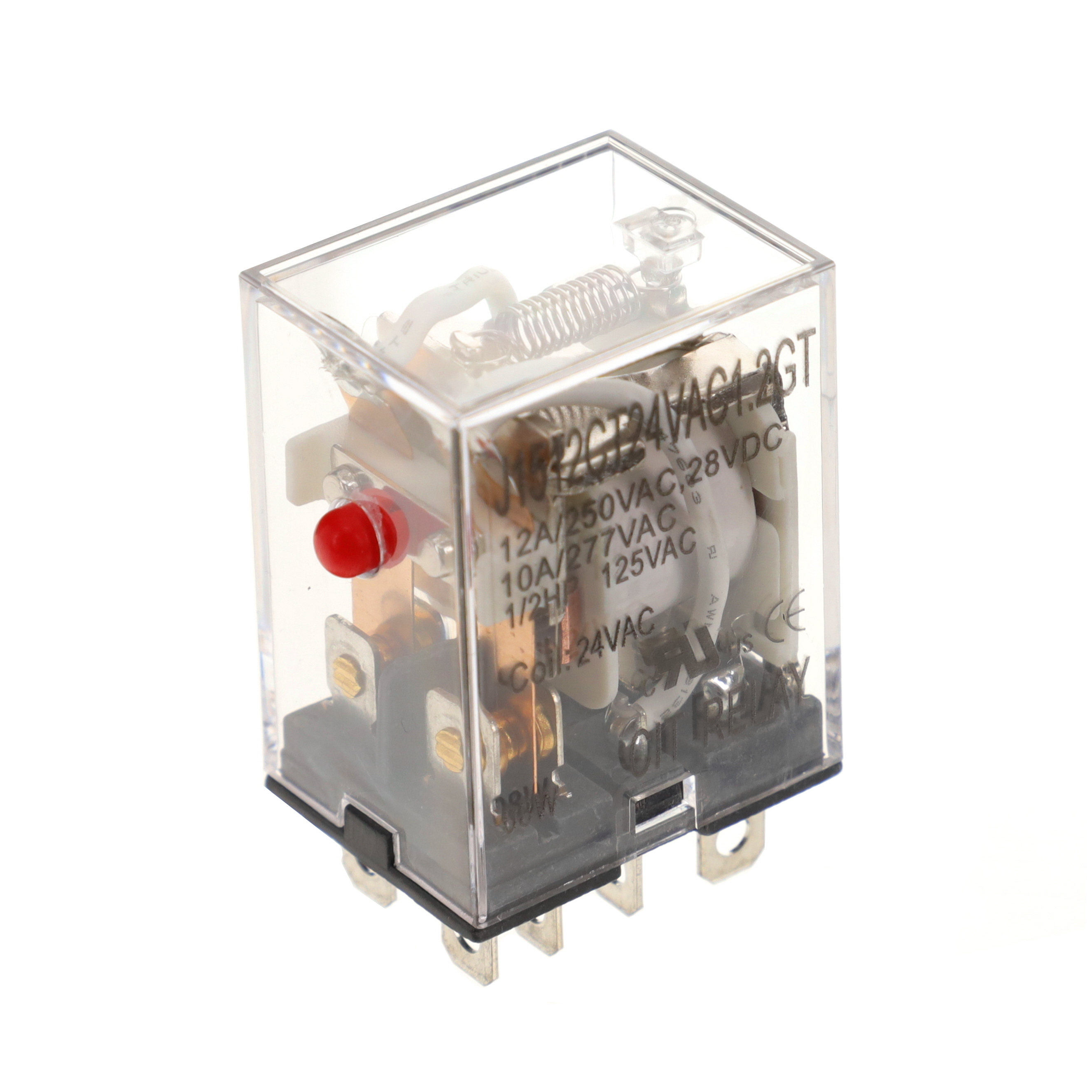

CIT Relay and Switch J1512CT24VAC1.2GT
Images are for reference only
Manufacturer
Manufacturer No
J1512CT24VAC1.2GT
Availability
In Stock
Packaging
Tray
Description
RELAY GEN PURPOSE DPDT 20A 24V
Detailed Description
General Purpose Relay DPDT (2 Form C) 24VAC Coil Socketable
Datasheet
Payment
Delivery
Mfr
CIT Relay and Switch
Grade
-
Series
J151
Features
Test Button
Coil Type
Non Latching
Packaging
Tray
Relay Type
General Purpose
Seal Rating
-
Coil Current
130.4 mA
Coil Voltage
24VAC
Contact Form
DPDT (2 Form C)
Operate Time
25 ms
Release Time
25 ms
Mounting Type
Socketable
Qualification
-
Approval Agency
cURus
Coil Insulation
-
Coil Resistance
184 Ohms
Contact Material
Silver Cadmium Oxide (AgCdO), Gold (Au)
Switching Voltage
300VAC - Max
Termination Style
Plug In
Base Product Number
J1512C
Load - Max Switching
6000VA
Must Operate Voltage
19.2 VAC
Must Release Voltage
7.2 VAC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
12 A
| Attribute | Value |
|---|---|
| Mfr | CIT Relay and Switch |
| Grade | - |
| Series | J151 |
| Features | Test Button |
| Coil Type | Non Latching |
| Packaging | Tray |
| Relay Type | General Purpose |
| Seal Rating | - |
| Coil Current | 130.4 mA |
| Coil Voltage | 24VAC |
| Contact Form | DPDT (2 Form C) |
| Operate Time | 25 ms |
| Release Time | 25 ms |
| Mounting Type | Socketable |
| Qualification | - |
| Approval Agency | cURus |
| Coil Insulation | - |
| Coil Resistance | 184 Ohms |
| Contact Material | Silver Cadmium Oxide (AgCdO), Gold (Au) |
| Switching Voltage | 300VAC - Max |
| Termination Style | Plug In |
| Base Product Number | J1512C |
| Load - Max Switching | 6000VA |
| Must Operate Voltage | 19.2 VAC |
| Must Release Voltage | 7.2 VAC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 12 A |
