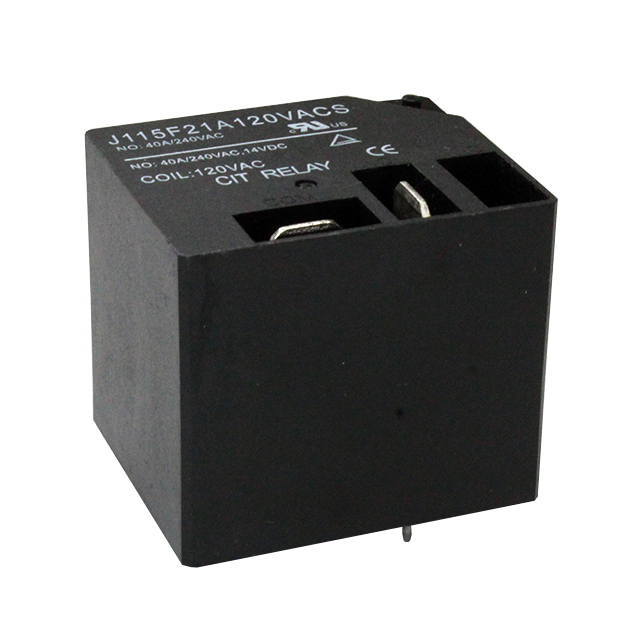

CIT Relay and Switch J115F21A120VACS
Images are for reference only
Manufacturer
Manufacturer No
J115F21A120VACS
Availability
In Stock
Packaging
Tube
Description
RELAY GEN PURPOSE SPST 40A 120V
Detailed Description
General Purpose Relay SPST-NO (1 Form A) 120VAC Coil Through Hole
Datasheet
Payment
Delivery
Mfr
CIT Relay and Switch
Grade
-
Series
J115F2
Features
-
Coil Type
Non Latching
Packaging
Tube
Relay Type
General Purpose
Seal Rating
Sealed - Fully
Coil Current
39.5 mA
Coil Voltage
120VAC
Contact Form
SPST-NO (1 Form A)
Operate Time
15 ms
Release Time
10 ms
Mounting Type
Through Hole
Qualification
-
Approval Agency
cURus, TUV
Coil Insulation
Class F
Coil Resistance
3.04 kOhms
Contact Material
Silver Tin Oxide (AgSnO)
Switching Voltage
277VAC, 110VDC - Max
Termination Style
PC Pin, Quick Connect - 0.250" (6.3mm)
Base Product Number
J115F21
Load - Max Switching
9600VA, 1120W
Must Operate Voltage
90 VAC
Must Release Voltage
36 VAC
Operating Temperature
-55°C ~ 125°C
Contact Rating (Current)
40 A
| Attribute | Value |
|---|---|
| Mfr | CIT Relay and Switch |
| Grade | - |
| Series | J115F2 |
| Features | - |
| Coil Type | Non Latching |
| Packaging | Tube |
| Relay Type | General Purpose |
| Seal Rating | Sealed - Fully |
| Coil Current | 39.5 mA |
| Coil Voltage | 120VAC |
| Contact Form | SPST-NO (1 Form A) |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Mounting Type | Through Hole |
| Qualification | - |
| Approval Agency | cURus, TUV |
| Coil Insulation | Class F |
| Coil Resistance | 3.04 kOhms |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Switching Voltage | 277VAC, 110VDC - Max |
| Termination Style | PC Pin, Quick Connect - 0.250" (6.3mm) |
| Base Product Number | J115F21 |
| Load - Max Switching | 9600VA, 1120W |
| Must Operate Voltage | 90 VAC |
| Must Release Voltage | 36 VAC |
| Operating Temperature | -55°C ~ 125°C |
| Contact Rating (Current) | 40 A |
