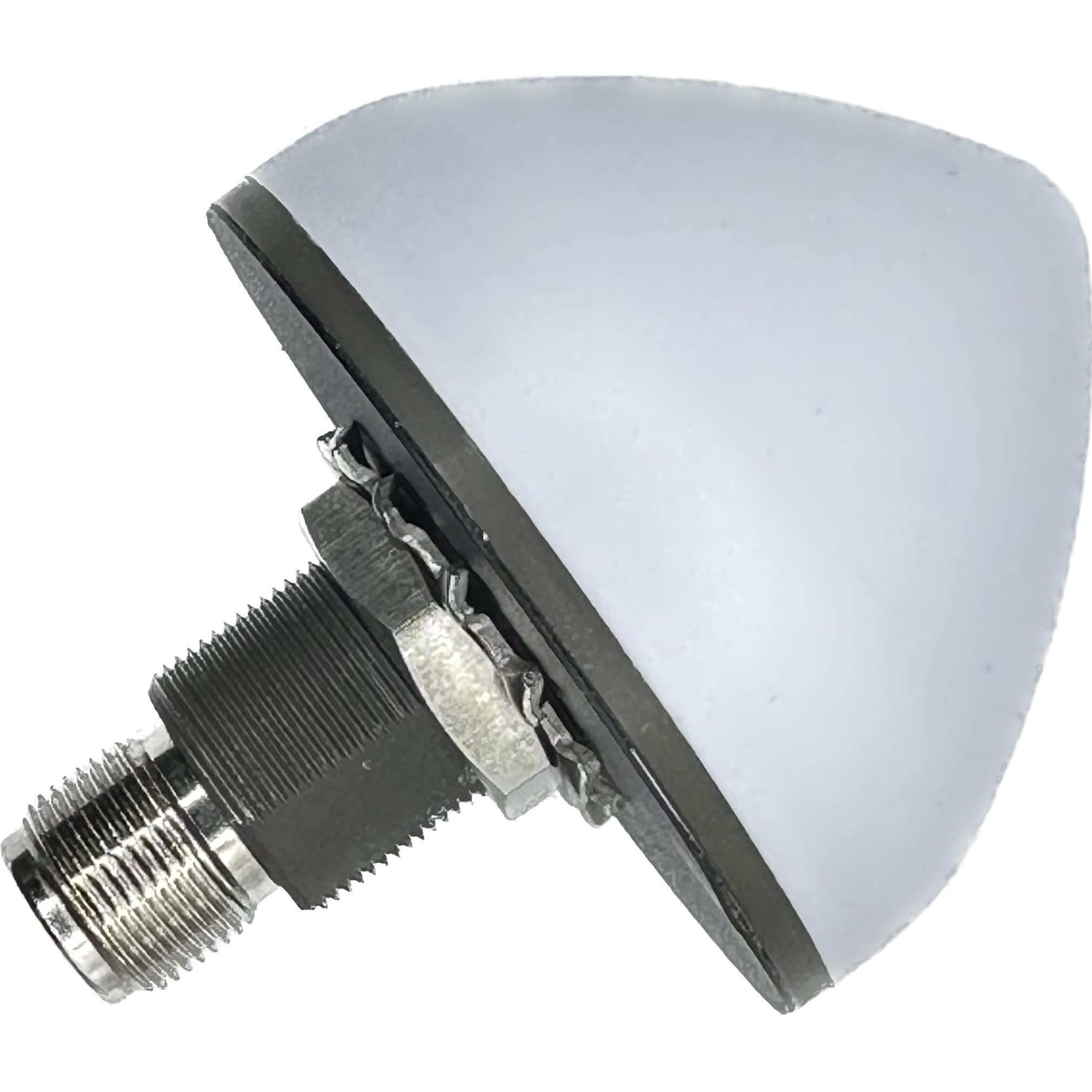

Amphenol RF ST0504-22-201-B
Images are for reference only
Manufacturer
Manufacturer No
ST0504-22-201-B
Packaging
Box
Description
RF ANTENNA EXTERNAL ANT
Detailed Description
RF ANTENNA BeiDou, Galileo, GLONASS, GNSS, GPS Dome N Type Panel Mount
Datasheet
Payment
Delivery
Gain
3.8dBi, 3.5dBi, 4.8dBi
VSWR
-
Series
-
Features
LNA
Packaging
Box
Return Loss
-10dB
Termination
N Type
Antenna Type
Dome
Applications
BeiDou, Galileo, GLONASS, GNSS, GPS
Height (Max)
1.890" (48.00mm)
Manufacturer
Amphenol RF
Mounting Type
Panel Mount
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency Range
1.56GHz ~ 1.562GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz
Number of Bands
3
Ingress Protection
IP67
RF Family/Standard
Navigation
Frequency (Center/Band)
1.561GHz, 1.575GHz, 1.602GHz
| Attribute | Value |
|---|---|
| Gain | 3.8dBi, 3.5dBi, 4.8dBi |
| VSWR | - |
| Series | - |
| Features | LNA |
| Packaging | Box |
| Return Loss | -10dB |
| Termination | N Type |
| Antenna Type | Dome |
| Applications | BeiDou, Galileo, GLONASS, GNSS, GPS |
| Height (Max) | 1.890" (48.00mm) |
| Manufacturer | Amphenol RF |
| Mounting Type | Panel Mount |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.56GHz ~ 1.562GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz |
| Number of Bands | 3 |
| Ingress Protection | IP67 |
| RF Family/Standard | Navigation |
| Frequency (Center/Band) | 1.561GHz, 1.575GHz, 1.602GHz |
