Step1: Product

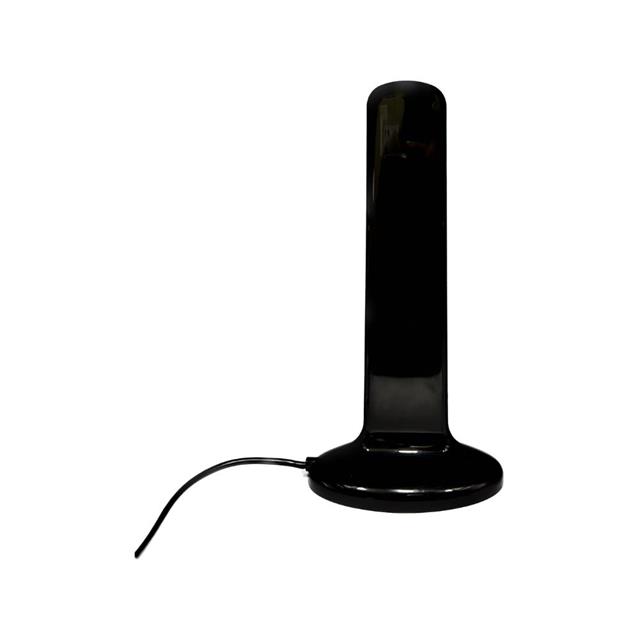

Amphenol RF ST0356-32-001-A
Images are for reference only
Manufacturer
Manufacturer No
ST0356-32-001-A
Packaging
Bag
Description
RF ANTENNA STICK SMA PLUG WIDE B
Detailed Description
RF ANTENNA Bluetooth, WLAN Whip, Straight SMA Connector Mount
Datasheet
Payment
Delivery
Gain
3dBi, 1.7dBi, 2.2dBi
VSWR
-
Series
-
Features
Cable - 170mm
Packaging
Bag
Power - Max
2 W
Return Loss
-10dB, -8dB, -7dB
Termination
SMA
Antenna Type
Whip, Straight
Applications
Bluetooth, WLAN
Height (Max)
-
Manufacturer
Amphenol RF
Mounting Type
Connector Mount
Frequency Group
Wide Band
Frequency Range
690MHz ~ 960MHz, 1.7GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz
Number of Bands
3
Ingress Protection
IP67
RF Family/Standard
Bluetooth
Base Product Number
ST0356
Frequency (Center/Band)
825MHz, 1.95GHz, 2.5GHz
| Attribute | Value |
|---|---|
| Gain | 3dBi, 1.7dBi, 2.2dBi |
| VSWR | - |
| Series | - |
| Features | Cable - 170mm |
| Packaging | Bag |
| Power - Max | 2 W |
| Return Loss | -10dB, -8dB, -7dB |
| Termination | SMA |
| Antenna Type | Whip, Straight |
| Applications | Bluetooth, WLAN |
| Height (Max) | - |
| Manufacturer | Amphenol RF |
| Mounting Type | Connector Mount |
| Frequency Group | Wide Band |
| Frequency Range | 690MHz ~ 960MHz, 1.7GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz |
| Number of Bands | 3 |
| Ingress Protection | IP67 |
| RF Family/Standard | Bluetooth |
| Base Product Number | ST0356 |
| Frequency (Center/Band) | 825MHz, 1.95GHz, 2.5GHz |
