Step1: Product

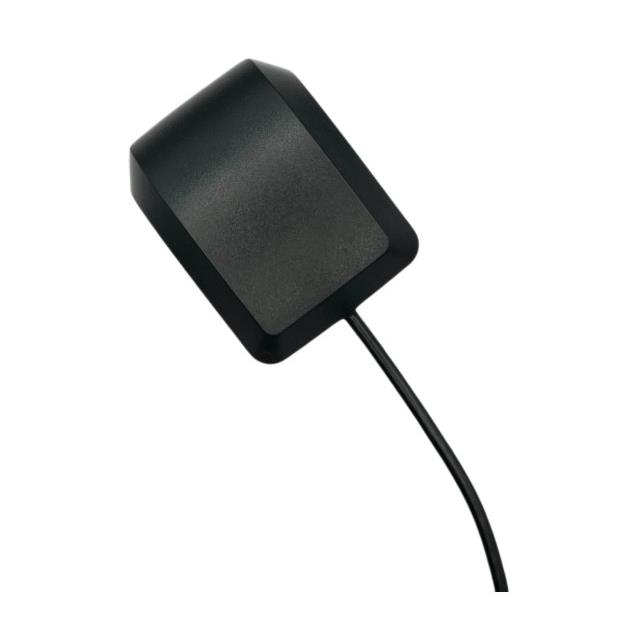

Amphenol RF ST0326-41-001-A
Images are for reference only
Manufacturer
Manufacturer No
ST0326-41-001-A
Availability
In Stock
Packaging
Bag
Description
RF ANTENNA ANTENNA ADHESIVE MOUN
Detailed Description
RF ANTENNA GLONASS, GNSS, GPS Module SMA Surface Mount
Datasheet
Payment
Delivery
Gain
-0.5dBi, 2.5dBi
VSWR
-
Series
-
Features
Cable - 3m, LNA
Packaging
Bag
Return Loss
-10dB
Termination
SMA
Antenna Type
Module
Applications
GLONASS, GNSS, GPS
Height (Max)
0.669" (17.00mm)
Manufacturer
Amphenol RF
Mounting Type
Surface Mount
Frequency Group
UHF (1GHz ~ 2GHz)
Frequency Range
1.572GHz ~ 1.578GHz, 1.594GHz ~ 1.61GHz
Number of Bands
2
Ingress Protection
IPX7
RF Family/Standard
Navigation
Base Product Number
ST0326
Frequency (Center/Band)
1.575GHz, 1.602GHz
| Attribute | Value |
|---|---|
| Gain | -0.5dBi, 2.5dBi |
| VSWR | - |
| Series | - |
| Features | Cable - 3m, LNA |
| Packaging | Bag |
| Return Loss | -10dB |
| Termination | SMA |
| Antenna Type | Module |
| Applications | GLONASS, GNSS, GPS |
| Height (Max) | 0.669" (17.00mm) |
| Manufacturer | Amphenol RF |
| Mounting Type | Surface Mount |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency Range | 1.572GHz ~ 1.578GHz, 1.594GHz ~ 1.61GHz |
| Number of Bands | 2 |
| Ingress Protection | IPX7 |
| RF Family/Standard | Navigation |
| Base Product Number | ST0326 |
| Frequency (Center/Band) | 1.575GHz, 1.602GHz |
