Step1: Product

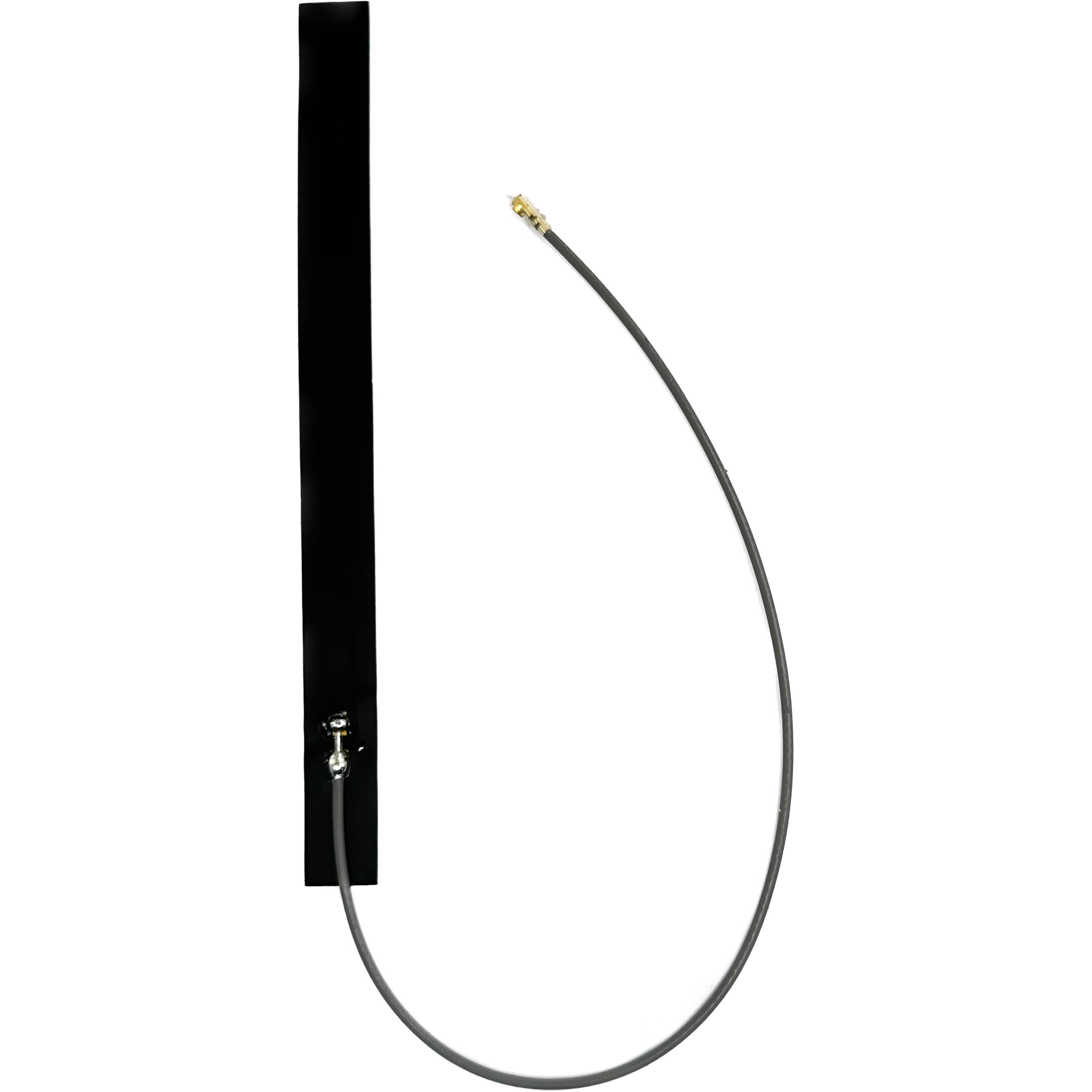

Amphenol RF ST0324-30-401-A
Images are for reference only
Manufacturer
Manufacturer No
ST0324-30-401-A
Packaging
Box
Description
WIDE BAND INTERNAL RF ANTENNA NB
Detailed Description
RF ANTENNA 4G, LTE Flat Patch I-PEX MHF1
Datasheet
Payment
Delivery
Gain
2.2dBi, 4.5dBi, 3dBi
VSWR
-
Series
-
Features
Cable - 180mm
Packaging
Box
Power - Max
1 W
Return Loss
-6dB
Termination
I-PEX MHF1
Antenna Type
Flat Patch
Applications
4G, LTE
Height (Max)
0.010" (0.25mm)
Manufacturer
Amphenol RF
Mounting Type
-
Frequency Group
Wide Band
Frequency Range
698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz
Number of Bands
3
Ingress Protection
-
RF Family/Standard
Cellular
Frequency (Center/Band)
829MHz, 1.94GHz, 2.495GHz
| Attribute | Value |
|---|---|
| Gain | 2.2dBi, 4.5dBi, 3dBi |
| VSWR | - |
| Series | - |
| Features | Cable - 180mm |
| Packaging | Box |
| Power - Max | 1 W |
| Return Loss | -6dB |
| Termination | I-PEX MHF1 |
| Antenna Type | Flat Patch |
| Applications | 4G, LTE |
| Height (Max) | 0.010" (0.25mm) |
| Manufacturer | Amphenol RF |
| Mounting Type | - |
| Frequency Group | Wide Band |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz |
| Number of Bands | 3 |
| Ingress Protection | - |
| RF Family/Standard | Cellular |
| Frequency (Center/Band) | 829MHz, 1.94GHz, 2.495GHz |
