Step1: Product

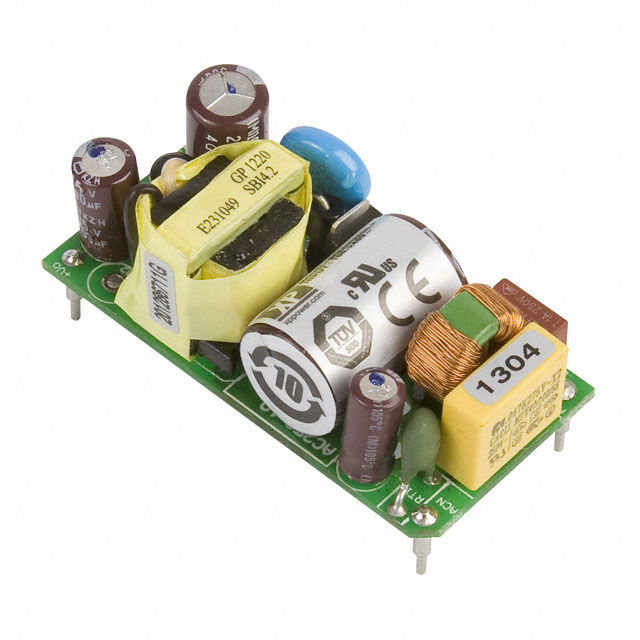

XP Power ECL10US15-P
Images are for reference only
Manufacturer
Manufacturer No
ECL10US15-P
Availability
In Stock
Package
4-DIP Module
Packaging
Box
Description
AC/DC CONVERTER 15V 10W
Detailed Description
Open Frame AC DC Converters 1 Output 15V 670mA 85 ~ 264 VAC Input
Datasheet
Payment
Delivery
Type
Open Frame
Series
ECL (10W)
Weight
0.057 lb (25.85 g)
Features
Universal Input
Packaging
Box
Efficiency
80%
Applications
ITE (Commercial)
Manufacturer
XP Power
Mounting Type
Through Hole
Power (Watts)
10 W
Package / Case
4-DIP Module
Approval Agency
CSA, cUL, EN, IEC, UL
Line Regulation
±0.5%
Load Regulation
±1%
Standard Number
62368-1
Voltage - Input
85 ~ 264 VAC
Size / Dimension
2.00" L x 1.00" W x 0.90" H (50.8mm x 25.4mm x 22.9mm)
Number of Outputs
1
Voltage - Output 1
15V
Voltage - Output 2
-
Voltage - Output 3
-
Voltage - Output 4
-
Base Product Number
ECL10US15
Operating Temperature
-20°C ~ 70°C (With Derating)
Current - Output (Max)
670mA
| Attribute | Value |
|---|---|
| Type | Open Frame |
| Series | ECL (10W) |
| Weight | 0.057 lb (25.85 g) |
| Features | Universal Input |
| Packaging | Box |
| Efficiency | 80% |
| Applications | ITE (Commercial) |
| Manufacturer | XP Power |
| Mounting Type | Through Hole |
| Power (Watts) | 10 W |
| Package / Case | 4-DIP Module |
| Approval Agency | CSA, cUL, EN, IEC, UL |
| Line Regulation | ±0.5% |
| Load Regulation | ±1% |
| Standard Number | 62368-1 |
| Voltage - Input | 85 ~ 264 VAC |
| Size / Dimension | 2.00" L x 1.00" W x 0.90" H (50.8mm x 25.4mm x 22.9mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Base Product Number | ECL10US15 |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Current - Output (Max) | 670mA |
