Step1: Product

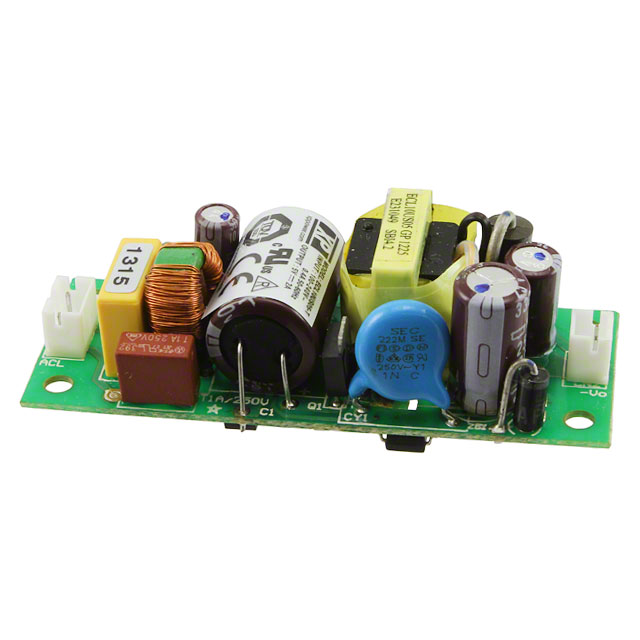

XP Power ECL10US05-T
Images are for reference only
Manufacturer
Manufacturer No
ECL10US05-T
Availability
In Stock
Packaging
Box
Description
AC/DC CONVERTER 5V 10W
Detailed Description
Open Frame AC DC Converters 1 Output 5V 85 ~ 264 VAC Input
Datasheet
Payment
Delivery
Mfr
XP Power
Type
Open Frame
Series
ECL (10W)
Features
Adjustable Output, DC Input Capable, Universal Input
Packaging
Box
Efficiency
75%
Applications
ITE (Commercial)
Mounting Type
Chassis Mount
Power (Watts)
10W
Approval Agency
-
Standard Number
62368-1
Voltage - Input
85 ~ 264 VAC
Size / Dimension
3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm)
Number of Outputs
1
Current - Output 1
2 A
Voltage - Output 1
5V
Voltage - Output 2
-
Voltage - Output 3
-
Voltage - Output 4
-
Voltage - Output 6
-
Base Product Number
ECL10
Voltage - Isolation
3 kV
Minimum Load Required
No
Operating Temperature
-20°C ~ 70°C (With Derating)
| Attribute | Value |
|---|---|
| Mfr | XP Power |
| Type | Open Frame |
| Series | ECL (10W) |
| Features | Adjustable Output, DC Input Capable, Universal Input |
| Packaging | Box |
| Efficiency | 75% |
| Applications | ITE (Commercial) |
| Mounting Type | Chassis Mount |
| Power (Watts) | 10W |
| Approval Agency | - |
| Standard Number | 62368-1 |
| Voltage - Input | 85 ~ 264 VAC |
| Size / Dimension | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
| Number of Outputs | 1 |
| Current - Output 1 | 2 A |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Base Product Number | ECL10 |
| Voltage - Isolation | 3 kV |
| Minimum Load Required | No |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
