Step1: Product

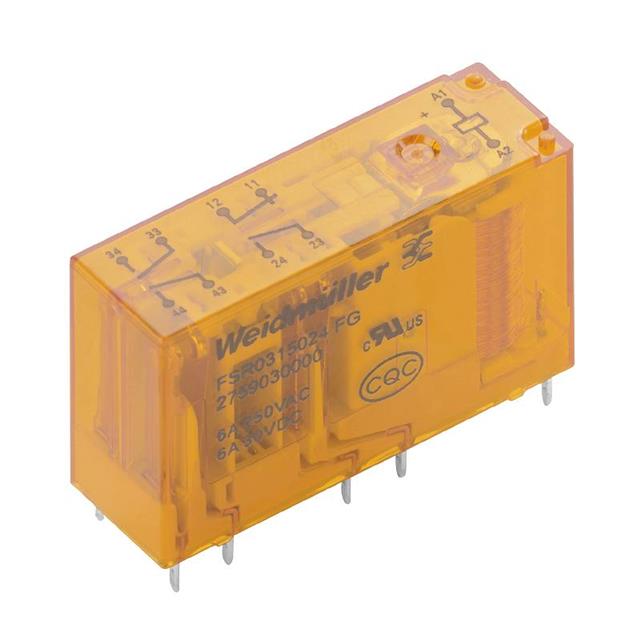

Weidmüller 2759030000
Images are for reference only
Manufacturer
Manufacturer No
2759030000
Packaging
Box
Description
MINIATURE INDUSTRIAL RELAY, 24 V
Detailed Description
General Purpose Relay 4PST-3NO/1NC (3 Form A, 1 Form B) 24VDC Coil Through Hole
Datasheet
Payment
Delivery
Mfr
Weidmüller
Grade
-
Series
FSR
Features
-
Coil Type
Non Latching
Packaging
Box
Relay Type
General Purpose
Seal Rating
-
Coil Current
15 mA
Coil Voltage
24VDC
Contact Form
4PST-3NO/1NC (3 Form A, 1 Form B)
Operate Time
20 ms
Release Time
20 ms
Mounting Type
Through Hole
Qualification
-
Approval Agency
CQC, cULus
Coil Insulation
-
Coil Resistance
1.6 kOhms
Contact Material
Silver Tin Oxide (AgSnO), Gold (Au)
Switching Voltage
250VAC - Max
Termination Style
PC Pin
Base Product Number
275903
Load - Max Switching
1500VA
Must Operate Voltage
18 VDC
Must Release Voltage
2.4 VDC
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
6 A
| Attribute | Value |
|---|---|
| Mfr | Weidmüller |
| Grade | - |
| Series | FSR |
| Features | - |
| Coil Type | Non Latching |
| Packaging | Box |
| Relay Type | General Purpose |
| Seal Rating | - |
| Coil Current | 15 mA |
| Coil Voltage | 24VDC |
| Contact Form | 4PST-3NO/1NC (3 Form A, 1 Form B) |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Mounting Type | Through Hole |
| Qualification | - |
| Approval Agency | CQC, cULus |
| Coil Insulation | - |
| Coil Resistance | 1.6 kOhms |
| Contact Material | Silver Tin Oxide (AgSnO), Gold (Au) |
| Switching Voltage | 250VAC - Max |
| Termination Style | PC Pin |
| Base Product Number | 275903 |
| Load - Max Switching | 1500VA |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 6 A |
