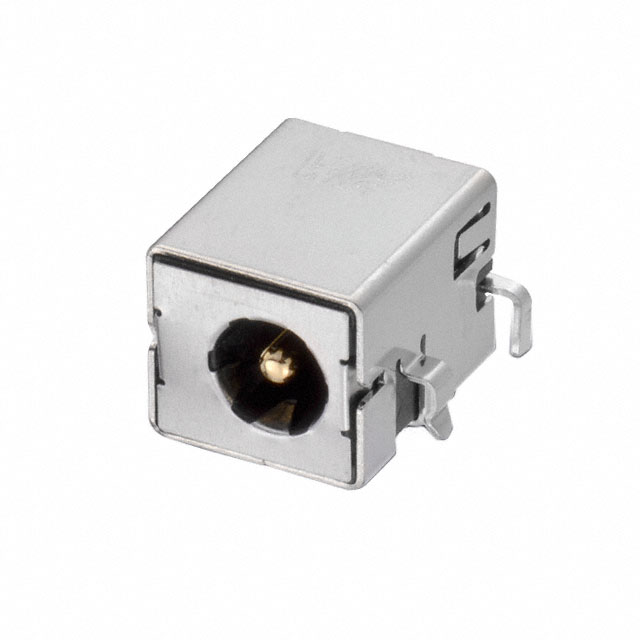

Würth Elektronik 694105309102

Images are for reference only

Manufacturer

Würth Elektronik

Manufacturer No

694105309102

Packaging

Tape & Reel (TR); Cut Tape (CT)

Description

CONN PWR JACK 1.75X4.75MM SOLDER

Detailed Description

Power Barrel Connector Jack 1.75mm ID (0.068"), 4.75mm OD (0.187") Through Hole, Right Angle

Datasheet

694105309102

Payment

Delivery

Gender

Male

Series

WR-DC

Features

-

Includes

-

Packaging

Tape & Reel (TR); Cut Tape (CT)

Shielding

Shielded

Body Color

Black

Termination

Solder

Thread Size

-

Manufacturer

Würth Elektronik

Body Material

-

Mounting Type

Through Hole, Right Angle

Connector Type

Jack

Actual Diameter

0.065" (1.65mm ID), 0.194" (4.93mm OD)

Voltage - Rated

20VDC

Contact Material

Copper Alloy

Housing Material

Polyamide (PA9T), Nylon 9T

Insulation Color

-

Mounting Feature

-

Ingress Protection

-

Internal Switch(s)

Single Switch, Normally Closed

Mating Length/Depth

0.335" (8.50mm)

Current Rating (Amps)

5.5 A

Operating Temperature

-40°C ~ 85°C

Contact Material - Plating

Tin

Material Flammability Rating

UL94 V-0

Number of Positions/Contacts

2 Conductors, 3 Contacts

Industry Recognized Mating Diameter

1.75mm ID (0.068"), 4.75mm OD (0.187")

Attribute	Value
Gender	Male
Series	WR-DC
Features	-
Includes	-
Packaging	Tape & Reel (TR); Cut Tape (CT)
Shielding	Shielded
Body Color	Black
Termination	Solder
Thread Size	-
Manufacturer	Würth Elektronik
Body Material	-
Mounting Type	Through Hole, Right Angle
Connector Type	Jack
Actual Diameter	0.065" (1.65mm ID), 0.194" (4.93mm OD)
Voltage - Rated	20VDC
Contact Material	Copper Alloy
Housing Material	Polyamide (PA9T), Nylon 9T
Insulation Color	-
Mounting Feature	-
Ingress Protection	-
Internal Switch(s)	Single Switch, Normally Closed
Mating Length/Depth	0.335" (8.50mm)
Current Rating (Amps)	5.5 A
Operating Temperature	-40°C ~ 85°C
Contact Material - Plating	Tin
Material Flammability Rating	UL94 V-0
Number of Positions/Contacts	2 Conductors, 3 Contacts
Industry Recognized Mating Diameter	1.75mm ID (0.068"), 4.75mm OD (0.187")
