Würth Elektronik 694103107102

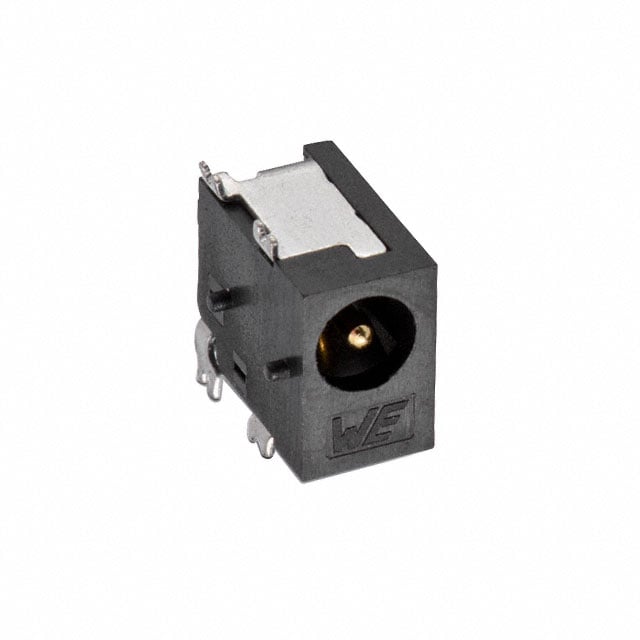

Images are for reference only

Manufacturer

Würth Elektronik

Manufacturer No

694103107102

Packaging

Tape & Reel (TR); Cut Tape (CT)

Description

CONN PWR JACK 1.05X3.5MM SOLDER

Detailed Description

Power Barrel Connector Jack 1.35mm ID (0.053"), 3.50mm OD (0.138") Surface Mount, Right Angle

Datasheet

694103107102

Payment

Delivery

Gender

Male

Series

WR-DC

Features

Board Guide

Includes

-

Packaging

Tape & Reel (TR); Cut Tape (CT)

Shielding

Unshielded

Body Color

Black

Termination

Solder

Thread Size

-

Manufacturer

Würth Elektronik

Body Material

-

Mounting Type

Surface Mount, Right Angle

Connector Type

Jack

Actual Diameter

0.041" (1.05mm ID), 0.154" (3.90mm OD)

Voltage - Rated

18VDC

Contact Material

Copper Alloy

Housing Material

Polyamide (PA9T), Nylon 9T

Insulation Color

-

Mounting Feature

-

Ingress Protection

-

Internal Switch(s)

Single Switch, Normally Closed

Mating Length/Depth

0.354" (9.00mm)

Current Rating (Amps)

3 A

Operating Temperature

-40°C ~ 85°C

Contact Material - Plating

Tin

Material Flammability Rating

UL94 V-0

Number of Positions/Contacts

2 Conductors, 3 Contacts

Industry Recognized Mating Diameter

1.35mm ID (0.053"), 3.50mm OD (0.138")

Attribute	Value
Gender	Male
Series	WR-DC
Features	Board Guide
Includes	-
Packaging	Tape & Reel (TR); Cut Tape (CT)
Shielding	Unshielded
Body Color	Black
Termination	Solder
Thread Size	-
Manufacturer	Würth Elektronik
Body Material	-
Mounting Type	Surface Mount, Right Angle
Connector Type	Jack
Actual Diameter	0.041" (1.05mm ID), 0.154" (3.90mm OD)
Voltage - Rated	18VDC
Contact Material	Copper Alloy
Housing Material	Polyamide (PA9T), Nylon 9T
Insulation Color	-
Mounting Feature	-
Ingress Protection	-
Internal Switch(s)	Single Switch, Normally Closed
Mating Length/Depth	0.354" (9.00mm)
Current Rating (Amps)	3 A
Operating Temperature	-40°C ~ 85°C
Contact Material - Plating	Tin
Material Flammability Rating	UL94 V-0
Number of Positions/Contacts	2 Conductors, 3 Contacts
Industry Recognized Mating Diameter	1.35mm ID (0.053"), 3.50mm OD (0.138")
