Step1: Product

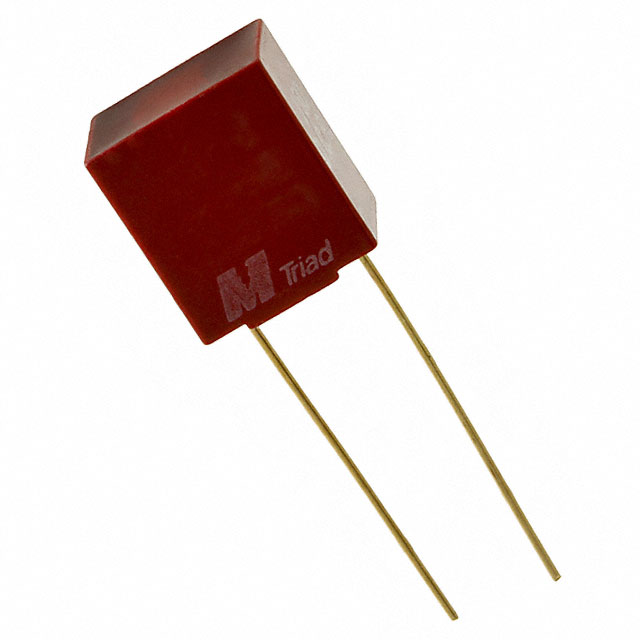

Triad Magnetics SP-128
Images are for reference only
Manufacturer
Manufacturer No
SP-128
Availability
In Stock
Packaging
Bulk
Description
AUDIO XFMR TH
Detailed Description
Impedance Primary Ohms Impedance Secondary Ohms Audio Transformer Through Hole
Datasheet
Payment
Delivery
Series
Red-Spec
Weight
-
Packaging
Bulk
Power Level
-
Return Loss
-
Manufacturer
Triad Magnetics
Mounting Type
Through Hole
Insertion Loss
-
Approval Agency
-
Frequency Range
-
Size / Dimension
0.410" L x 0.310" W (10.41mm x 7.87mm)
Transformer Type
-
Termination Style
PC Pin
Frequency Response
-
Voltage - Isolation
1000VRMS @ 1 Second
Height - Seated (Max)
0.465" (11.80mm)
Operating Temperature
-40°C ~ 85°C
Impedance - Primary (Ohms)
-
Impedance - Secondary (Ohms)
-
DC Resistance (DCR) - Primary
15Ohm
DC Resistance (DCR) - Secondary
-
Turns Ratio - Primary:Secondary
-
| Attribute | Value |
|---|---|
| Series | Red-Spec |
| Weight | - |
| Packaging | Bulk |
| Power Level | - |
| Return Loss | - |
| Manufacturer | Triad Magnetics |
| Mounting Type | Through Hole |
| Insertion Loss | - |
| Approval Agency | - |
| Frequency Range | - |
| Size / Dimension | 0.410" L x 0.310" W (10.41mm x 7.87mm) |
| Transformer Type | - |
| Termination Style | PC Pin |
| Frequency Response | - |
| Voltage - Isolation | 1000VRMS @ 1 Second |
| Height - Seated (Max) | 0.465" (11.80mm) |
| Operating Temperature | -40°C ~ 85°C |
| Impedance - Primary (Ohms) | - |
| Impedance - Secondary (Ohms) | - |
| DC Resistance (DCR) - Primary | 15Ohm |
| DC Resistance (DCR) - Secondary | - |
| Turns Ratio - Primary:Secondary | - |
