Step1: Product
Triad Magnetics A-78J

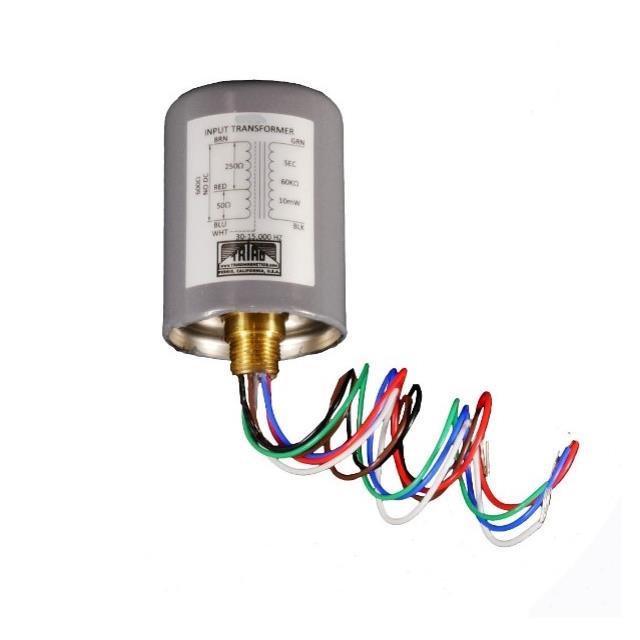

Images are for reference only
Manufacturer
Manufacturer No
A-78J
Availability
In Stock
Packaging
Bulk
Description
AUDIO XFMR 2K / 600 150 CHAS MT
Detailed Description
2k Impedance Primary Ohms 600, 150 Impedance Secondary Ohms 1.82:1 Audio Transformer 20Hz ~ 15kHz Chassis Mount
Datasheet
Payment
Delivery
Series
J
Weight
-
Packaging
Bulk
Power Level
100mW
Return Loss
-
Manufacturer
Triad Magnetics
Mounting Type
Chassis Mount
Insertion Loss
-
Approval Agency
-
Frequency Range
20Hz ~ 15kHz
Size / Dimension
-
Transformer Type
Impedance Matching
Termination Style
Wire Leads
Frequency Response
±3dB
Voltage - Isolation
-
Height - Seated (Max)
-
Operating Temperature
-
Impedance - Primary (Ohms)
2k
Impedance - Secondary (Ohms)
600, 150
DC Resistance (DCR) - Primary
112Ohm
DC Resistance (DCR) - Secondary
48.5Ohm
Turns Ratio - Primary:Secondary
1.82:1
| Attribute | Value |
|---|---|
| Series | J |
| Weight | - |
| Packaging | Bulk |
| Power Level | 100mW |
| Return Loss | - |
| Manufacturer | Triad Magnetics |
| Mounting Type | Chassis Mount |
| Insertion Loss | - |
| Approval Agency | - |
| Frequency Range | 20Hz ~ 15kHz |
| Size / Dimension | - |
| Transformer Type | Impedance Matching |
| Termination Style | Wire Leads |
| Frequency Response | ±3dB |
| Voltage - Isolation | - |
| Height - Seated (Max) | - |
| Operating Temperature | - |
| Impedance - Primary (Ohms) | 2k |
| Impedance - Secondary (Ohms) | 600, 150 |
| DC Resistance (DCR) - Primary | 112Ohm |
| DC Resistance (DCR) - Secondary | 48.5Ohm |
| Turns Ratio - Primary:Secondary | 1.82:1 |
