Step1: Product

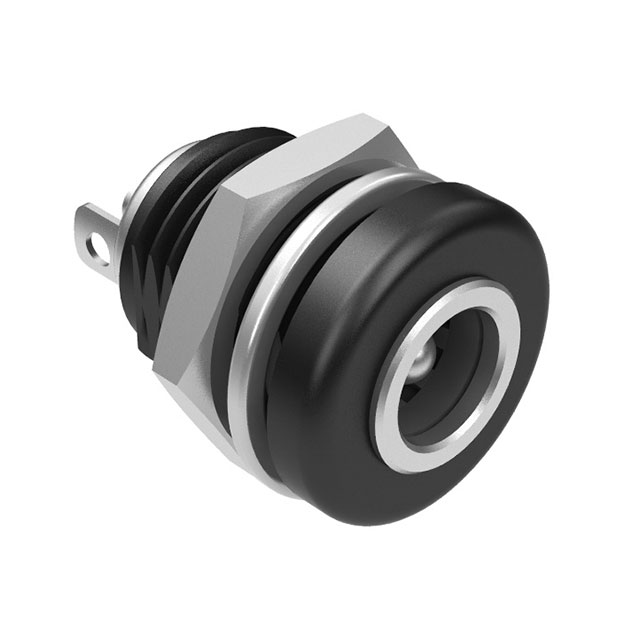

Tensility International Corp 54-00151
Images are for reference only
Manufacturer
Manufacturer No
54-00151
Availability
In Stock
Packaging
Tray
Description
CONN JACK PNL MNT 5.5X2.1MM ISO
Detailed Description
Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Panel Mount
Datasheet
Payment
Delivery
Gender
Male
Series
-
Features
Mounting Hardware
Includes
3 pcs - 1 Connector, 1 Nut, 1 Washer
Packaging
Tray
Shielding
Unshielded
Body Color
Silver, Black
Termination
Solder Cup
Thread Size
M11x1
Manufacturer
Tensility International Corp
Body Material
-
Mounting Type
Panel Mount
Connector Type
Jack
Actual Diameter
0.083" (2.10mm ID), 0.217" (5.50mm OD)
Voltage - Rated
48V
Contact Material
-
Housing Material
Polyamide (PA), Nylon
Insulation Color
Black
Mounting Feature
Bulkhead - Rear Side Nut
Ingress Protection
-
Internal Switch(s)
Does Not Contain Switch
Mating Length/Depth
-
Current Rating (Amps)
7.5 A
Operating Temperature
-25°C ~ 105°C
Contact Material - Plating
Nickel
Material Flammability Rating
UL94 V-0
Number of Positions/Contacts
2 Conductors, 2 Contacts
Industry Recognized Mating Diameter
2.10mm ID (0.083"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Series | - |
| Features | Mounting Hardware |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Packaging | Tray |
| Shielding | Unshielded |
| Body Color | Silver, Black |
| Termination | Solder Cup |
| Thread Size | M11x1 |
| Manufacturer | Tensility International Corp |
| Body Material | - |
| Mounting Type | Panel Mount |
| Connector Type | Jack |
| Actual Diameter | 0.083" (2.10mm ID), 0.217" (5.50mm OD) |
| Voltage - Rated | 48V |
| Contact Material | - |
| Housing Material | Polyamide (PA), Nylon |
| Insulation Color | Black |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Ingress Protection | - |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | - |
| Current Rating (Amps) | 7.5 A |
| Operating Temperature | -25°C ~ 105°C |
| Contact Material - Plating | Nickel |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Industry Recognized Mating Diameter | 2.10mm ID (0.083"), 5.50mm OD (0.217") |
