Step1: Product

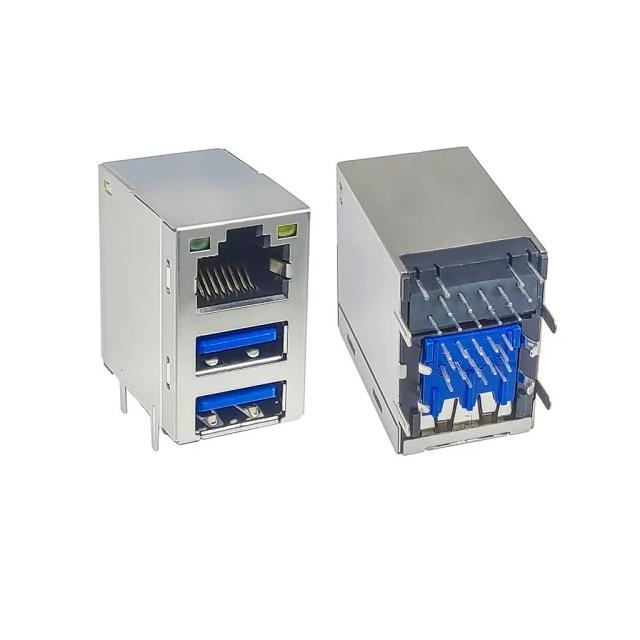

TeleWire Tech TWU082292125S1L27
Images are for reference only
Manufacturer
Manufacturer No
TWU082292125S1L27
Packaging
Tray
Description
RJ45 1000 BASE-T DUAL USB 3.0 G/
Detailed Description
Port RJ45 with USB A, Dual Through Hole 10/100/1000 Base-TX, AutoMDIX
Datasheet
Payment
Delivery
Series
-
Features
Board Lock
LED Color
Green - Yellow, Green
Packaging
Tray
Shielding
Shielded
Orientation
90° Angle (Right)
Termination
Solder
Applications
10/100/1000 Base-TX, AutoMDIX
Manufacturer
TeleWire Tech
Mounting Type
Through Hole
Tab Direction
Up
Connector Type
RJ45 with USB A, Dual
Contact Finish
Gold
Shield Material
Brass, Nickel Coated
Contact Material
Phosphor Bronze
Housing Material
Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Height Above Board
1.223" (31.06mm)
Operating Temperature
-40°C ~ 80°C
Contact Finish Thickness
6.00µin (0.152µm)
Number of Cores per Jack
8
| Attribute | Value |
|---|---|
| Series | - |
| Features | Board Lock |
| LED Color | Green - Yellow, Green |
| Packaging | Tray |
| Shielding | Shielded |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Applications | 10/100/1000 Base-TX, AutoMDIX |
| Manufacturer | TeleWire Tech |
| Mounting Type | Through Hole |
| Tab Direction | Up |
| Connector Type | RJ45 with USB A, Dual |
| Contact Finish | Gold |
| Shield Material | Brass, Nickel Coated |
| Contact Material | Phosphor Bronze |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Height Above Board | 1.223" (31.06mm) |
| Operating Temperature | -40°C ~ 80°C |
| Contact Finish Thickness | 6.00µin (0.152µm) |
| Number of Cores per Jack | 8 |
