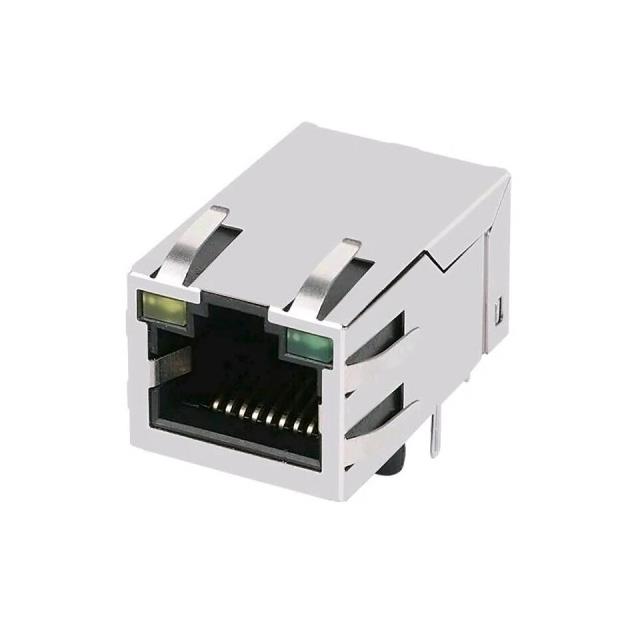

TeleWire Tech TWE09129925241DL3T
Images are for reference only
Manufacturer
Manufacturer No
TWE09129925241DL3T
Packaging
Tray
Description
RJ45 8P8C 1000 BASE-T R/A SHLD Y
Detailed Description
Port RJ45 Through Hole 10/100/1000 Base-T, AutoMDIX
Datasheet
Payment
Delivery
Series
-
Features
Board Lock
LED Color
Yellow - Green
Packaging
Tray
Shielding
Shielded, EMI Finger
Orientation
90° Angle (Right)
Termination
Solder
Applications
10/100/1000 Base-T, AutoMDIX
Manufacturer
TeleWire Tech
Mounting Type
Through Hole
Tab Direction
Up
Connector Type
RJ45
Contact Finish
Gold
Shield Material
Brass, Nickel Coated
Contact Material
Phosphor Bronze
Housing Material
Polybutylene Terephthalate (PBT), Glass Filled
Height Above Board
0.530" (13.45mm)
Operating Temperature
-40°C ~ 80°C
Contact Finish Thickness
6.00µin (0.152µm)
Number of Cores per Jack
8
| Attribute | Value |
|---|---|
| Series | - |
| Features | Board Lock |
| LED Color | Yellow - Green |
| Packaging | Tray |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Applications | 10/100/1000 Base-T, AutoMDIX |
| Manufacturer | TeleWire Tech |
| Mounting Type | Through Hole |
| Tab Direction | Up |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Shield Material | Brass, Nickel Coated |
| Contact Material | Phosphor Bronze |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Height Above Board | 0.530" (13.45mm) |
| Operating Temperature | -40°C ~ 80°C |
| Contact Finish Thickness | 6.00µin (0.152µm) |
| Number of Cores per Jack | 8 |
