Step1: Product

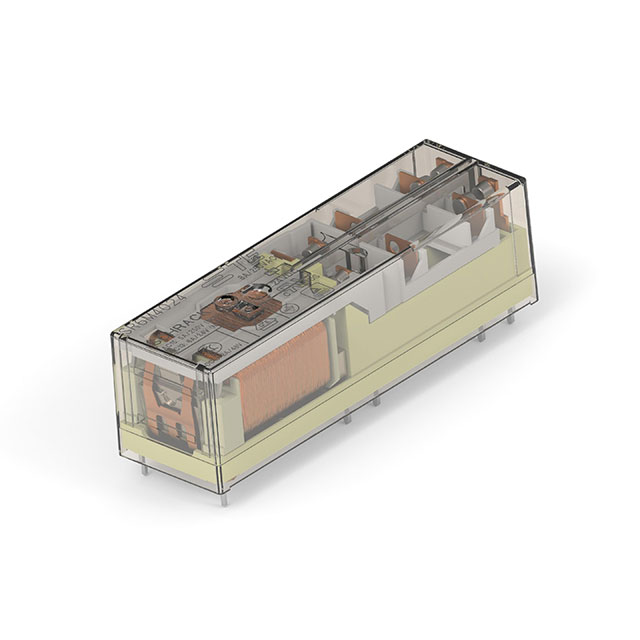

TE Connectivity Potter & Brumfield Relays 1415078-1
Images are for reference only
Manufacturer
Manufacturer No
1415078-1
Availability
In Stock
Packaging
Tube
Description
SR6D4012
Detailed Description
General Purpose Relay 4PST-2NO/2NC (2 Form A, 2 Form B) 12VDC Coil Through Hole
Datasheet
Payment
Delivery
Mfr
TE Connectivity Potter & Brumfield Relays
Grade
-
Series
SR6, SCHRACK
Features
-
Coil Type
Non Latching
Packaging
Tube
Relay Type
General Purpose
Seal Rating
-
Coil Current
100 mA
Coil Voltage
12VDC
Contact Form
4PST-2NO/2NC (2 Form A, 2 Form B)
Mounting Type
Through Hole
Qualification
-
Approval Agency
cURus, TUV, VDE
Coil Insulation
-
Coil Resistance
120 Ohms
Contact Material
Silver Tin Oxide (AgSnO)
Switching Voltage
400VAC - Max
Termination Style
PC Pin
Base Product Number
SR6D4
Load - Max Switching
3200VA
Must Operate Voltage
9 VDC
Must Release Voltage
1.2 VDC
Operating Temperature
-25°C ~ 70°C
Contact Rating (Current)
8 A
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Potter & Brumfield Relays |
| Grade | - |
| Series | SR6, SCHRACK |
| Features | - |
| Coil Type | Non Latching |
| Packaging | Tube |
| Relay Type | General Purpose |
| Seal Rating | - |
| Coil Current | 100 mA |
| Coil Voltage | 12VDC |
| Contact Form | 4PST-2NO/2NC (2 Form A, 2 Form B) |
| Mounting Type | Through Hole |
| Qualification | - |
| Approval Agency | cURus, TUV, VDE |
| Coil Insulation | - |
| Coil Resistance | 120 Ohms |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Switching Voltage | 400VAC - Max |
| Termination Style | PC Pin |
| Base Product Number | SR6D4 |
| Load - Max Switching | 3200VA |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operating Temperature | -25°C ~ 70°C |
| Contact Rating (Current) | 8 A |
