Step1: Product

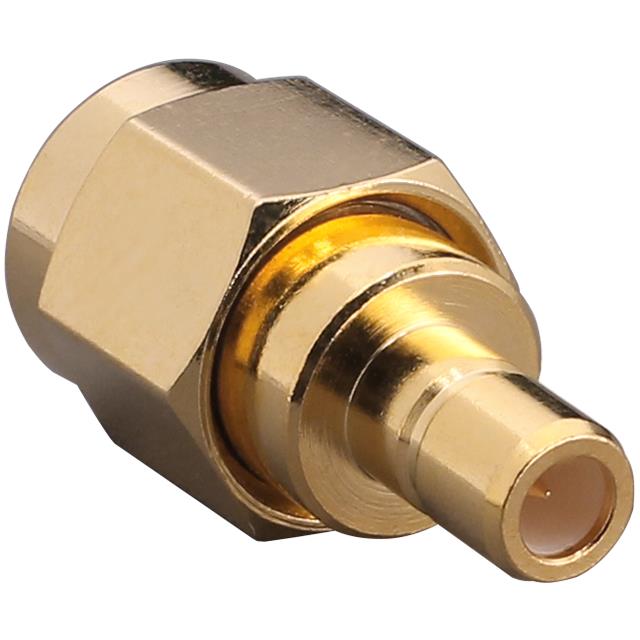

TE Connectivity Linx ADP-SMAM-SMBF-G
Images are for reference only
Manufacturer
Manufacturer No
ADP-SMAM-SMBF-G
Availability
In Stock
Packaging
Bulk
Description
COAX ADAPT SMA TO SMB
Detailed Description
Adapter Coaxial Connector SMA Plug, Male Pin To SMB Jack, Male Pin 50 Ohms
Datasheet
Payment
Delivery
Mfr
TE Connectivity Linx
Style
Straight
Series
-
Features
-
Includes
-
Impedance
50 Ohms
Packaging
Bulk
Body Finish
Gold
Adapter Type
Plug to Jack
Body Material
Brass
Center Gender
Female to Male
Mating Cycles
500
Mounting Type
Free Hanging (In-Line)
Adapter Series
SMA to SMB
Fastening Type
Snap-On, Threaded
Insertion Loss
-
Conversion Type
Between Series
Frequency - Max
4 GHz
Mounting Feature
-
Ingress Protection
-
Base Product Number
ADP-SMAM
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Brass
Convert To (Adapter End)
SMB Jack, Male Pin
Convert From (Adapter End)
SMA Plug, Male Pin
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Linx |
| Style | Straight |
| Series | - |
| Features | - |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | Gold |
| Adapter Type | Plug to Jack |
| Body Material | Brass |
| Center Gender | Female to Male |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Adapter Series | SMA to SMB |
| Fastening Type | Snap-On, Threaded |
| Insertion Loss | - |
| Conversion Type | Between Series |
| Frequency - Max | 4 GHz |
| Mounting Feature | - |
| Ingress Protection | - |
| Base Product Number | ADP-SMAM |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
| Convert To (Adapter End) | SMB Jack, Male Pin |
| Convert From (Adapter End) | SMA Plug, Male Pin |
