Step1: Product

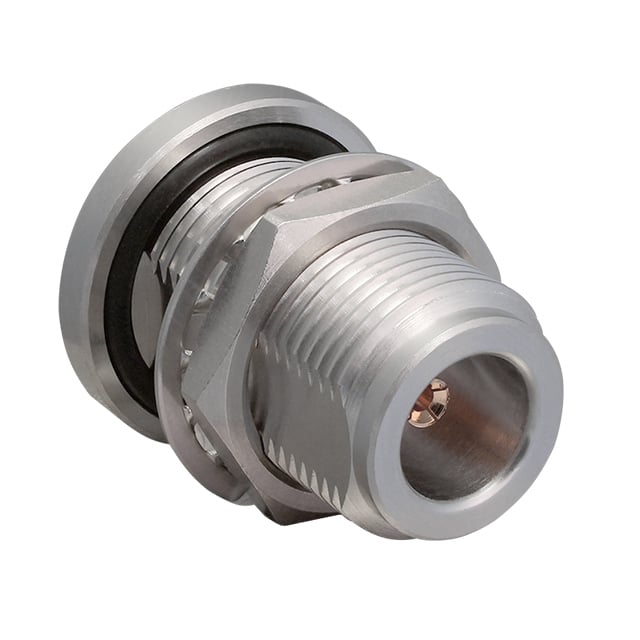

TE Connectivity Linx ADP-SMAF-NF-B-W
Images are for reference only
Manufacturer
Manufacturer No
ADP-SMAF-NF-B-W
Availability
In Stock
Packaging
Bulk
Description
COAX ADAPT SMA TO N
Detailed Description
Adapter Coaxial Connector SMA Jack, Female Socket To N Jack, Female Socket 50 Ohms
Datasheet
Payment
Delivery
Mfr
TE Connectivity Linx
Style
Straight
Series
-
Features
Low PIM
Includes
-
Impedance
50 Ohms
Packaging
Bulk
Body Finish
White Bronze
Adapter Type
Jack to Jack
Body Material
Brass
Center Gender
Female to Female
Mating Cycles
500
Mounting Type
Panel Mount
Adapter Series
SMA to N
Fastening Type
Threaded, Threaded
Insertion Loss
-
Conversion Type
Between Series
Frequency - Max
11 GHz
Mounting Feature
Bulkhead
Ingress Protection
-
Base Product Number
ADP-SMAF
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Brass
Convert To (Adapter End)
N Jack, Female Socket
Convert From (Adapter End)
SMA Jack, Female Socket
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Linx |
| Style | Straight |
| Series | - |
| Features | Low PIM |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | White Bronze |
| Adapter Type | Jack to Jack |
| Body Material | Brass |
| Center Gender | Female to Female |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Adapter Series | SMA to N |
| Fastening Type | Threaded, Threaded |
| Insertion Loss | - |
| Conversion Type | Between Series |
| Frequency - Max | 11 GHz |
| Mounting Feature | Bulkhead |
| Ingress Protection | - |
| Base Product Number | ADP-SMAF |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
| Convert To (Adapter End) | N Jack, Female Socket |
| Convert From (Adapter End) | SMA Jack, Female Socket |
